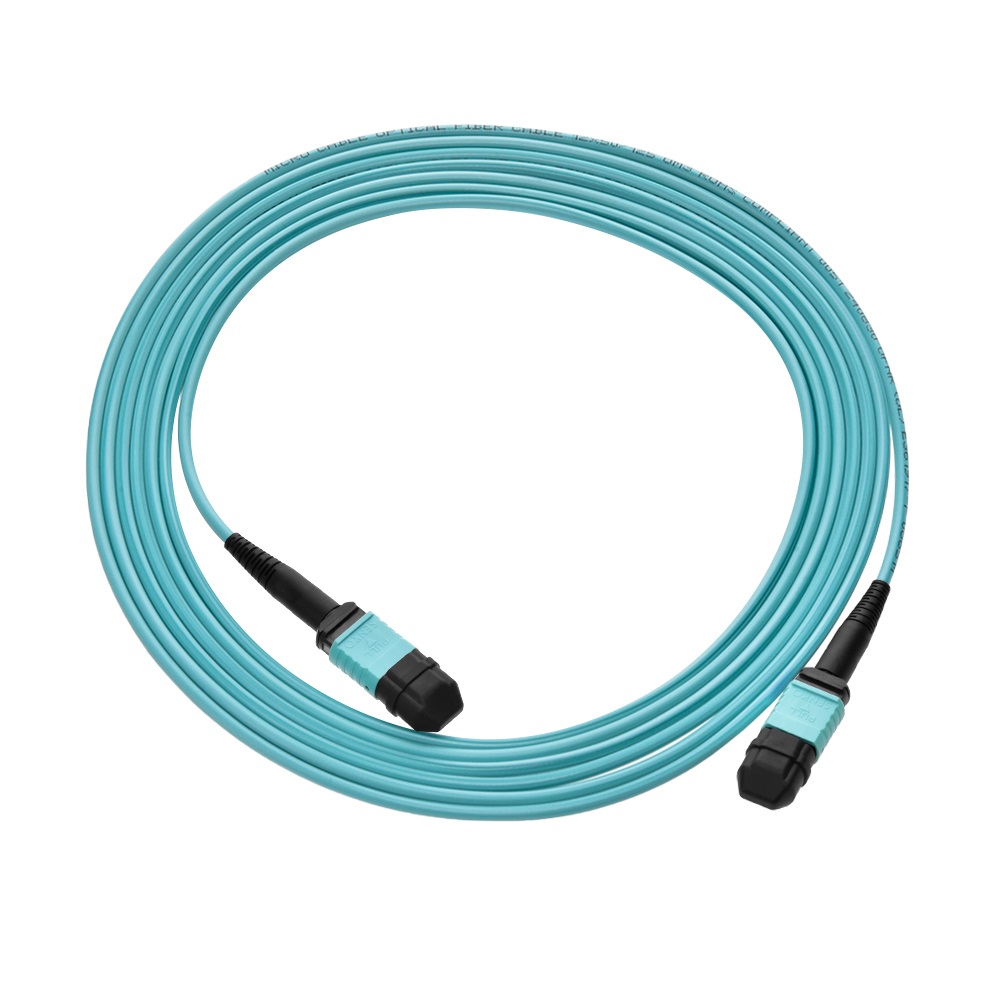

3m MPO OM3 Multimode 12-Fiber F to F Type B Aqua OFNR SKU: 105542
Base
TS (12%)
Total
1+
$31.93
$3.83
$35.76
5+
$31.30
$3.76
$35.06
20+
$30.67
$3.68
$34.35
TS: Tariff Surcharge (12%)
Business Member Pricing
Warranty:
- 30-day money back guarantee
- 15% restocking fee after 30days.
- Safe SSL encrypted shopping
Description
Spec Drawing Packaging

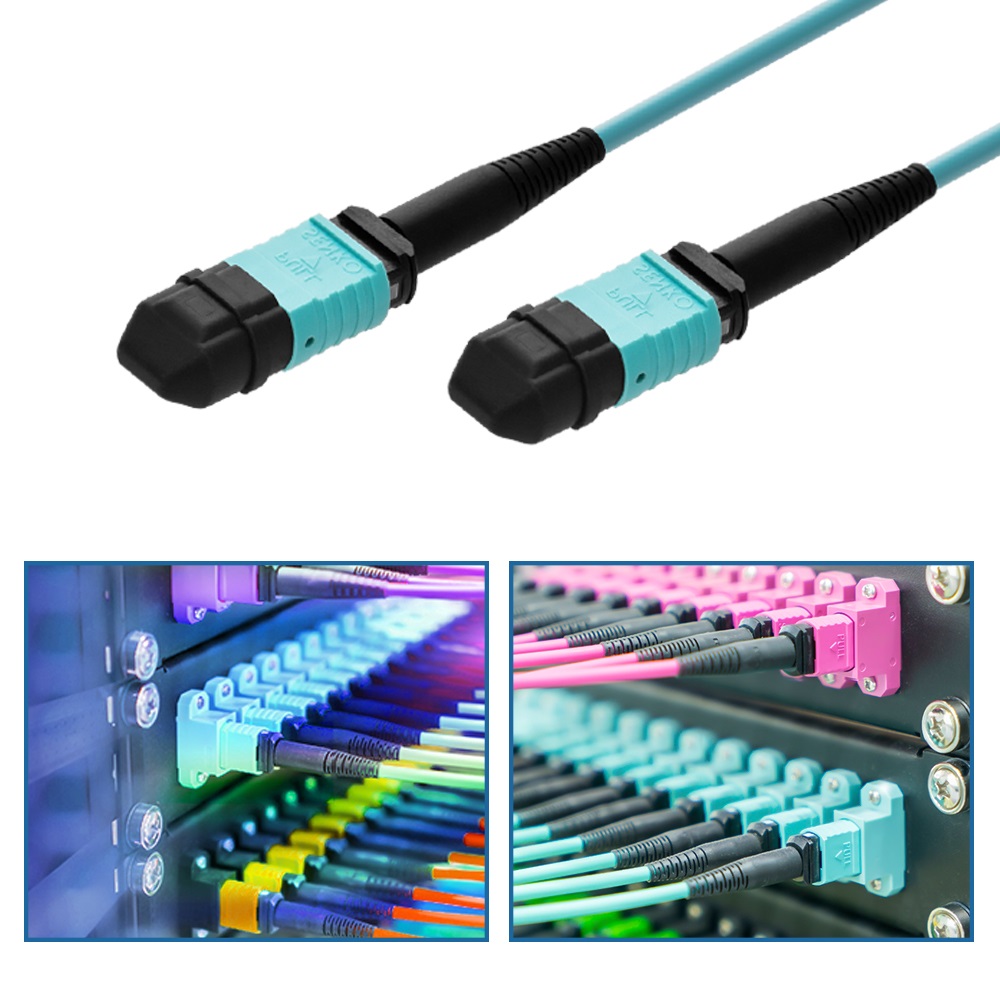

MPO trunk cable is designed for high-density fiber patching in data centers which need space saving and reduce cable management troubles. With MPO connectors, it is optimized for 40G QSFP+ SR4/CSR4, 100G QSFP28 SR4 optics direct connection and high-density data center applications.

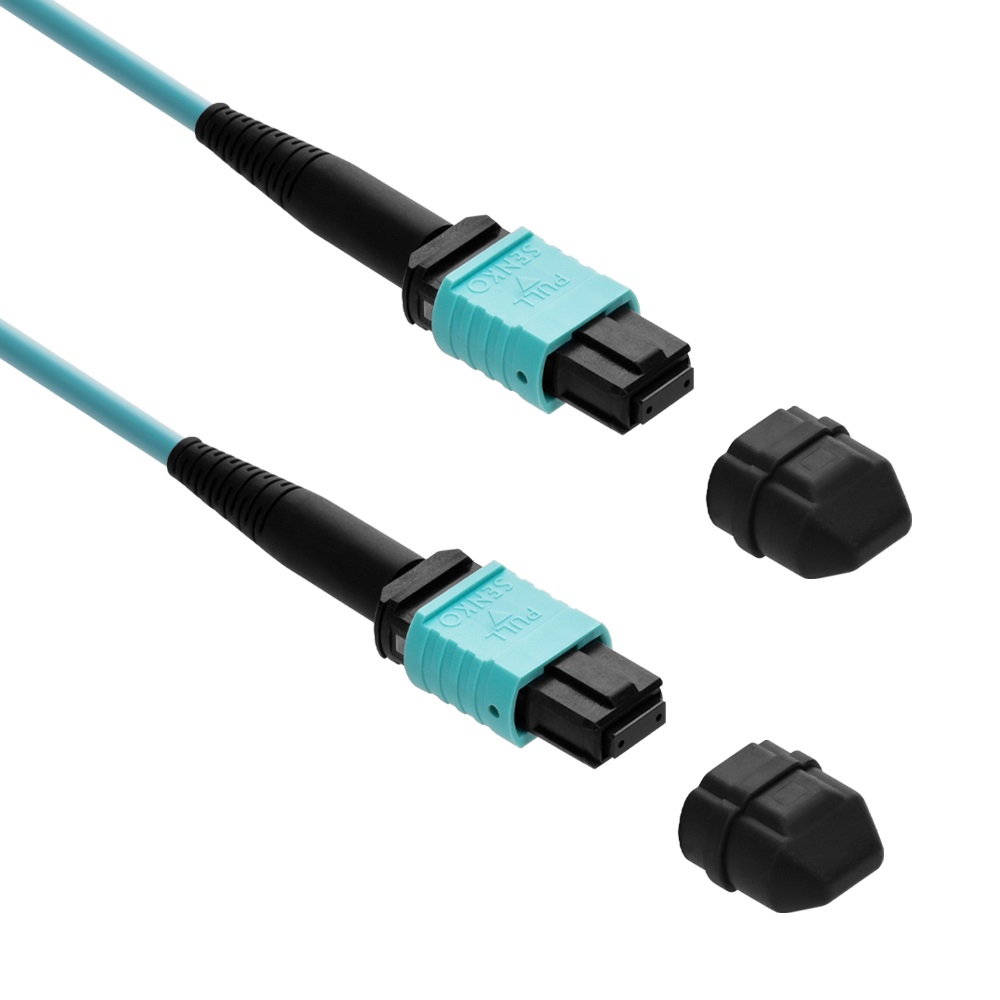

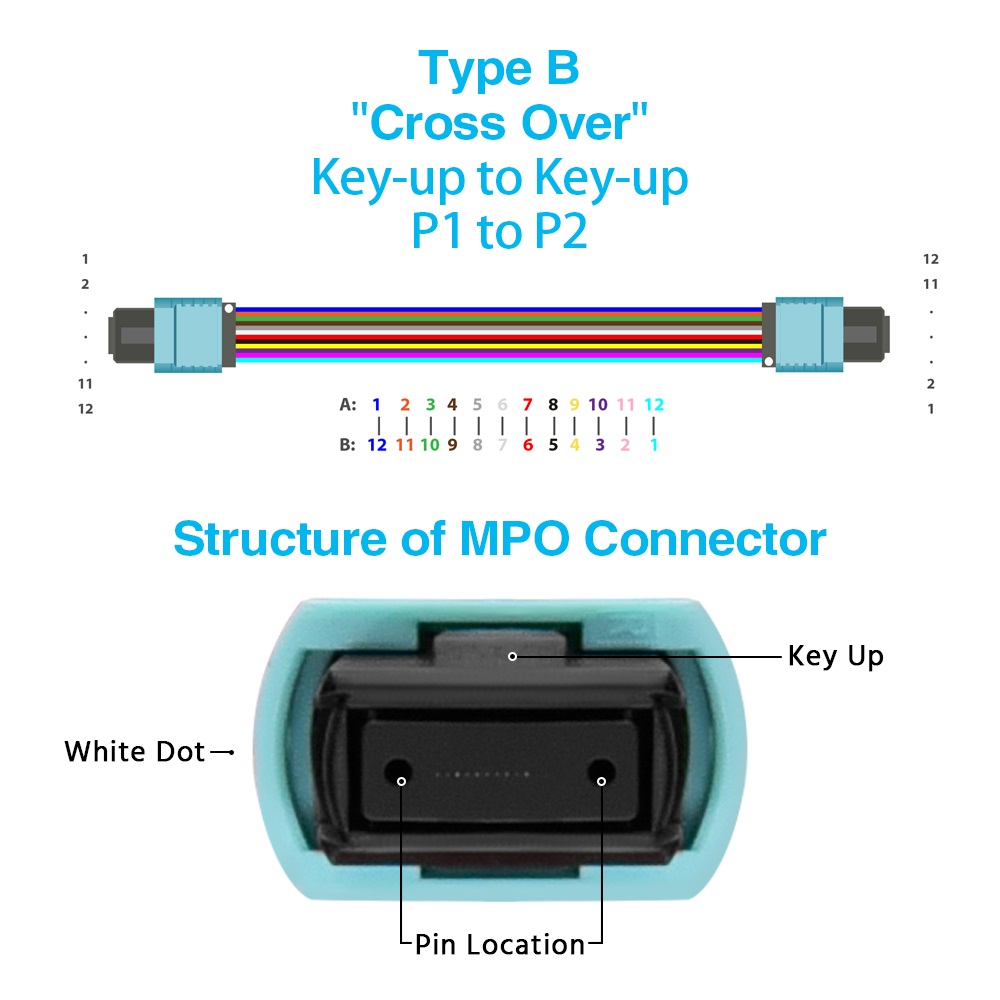

| Connector Type | MPO Female to Female B Type | ||
| Polishing | UPC | ||
| Return Loss | 20 dB | ||

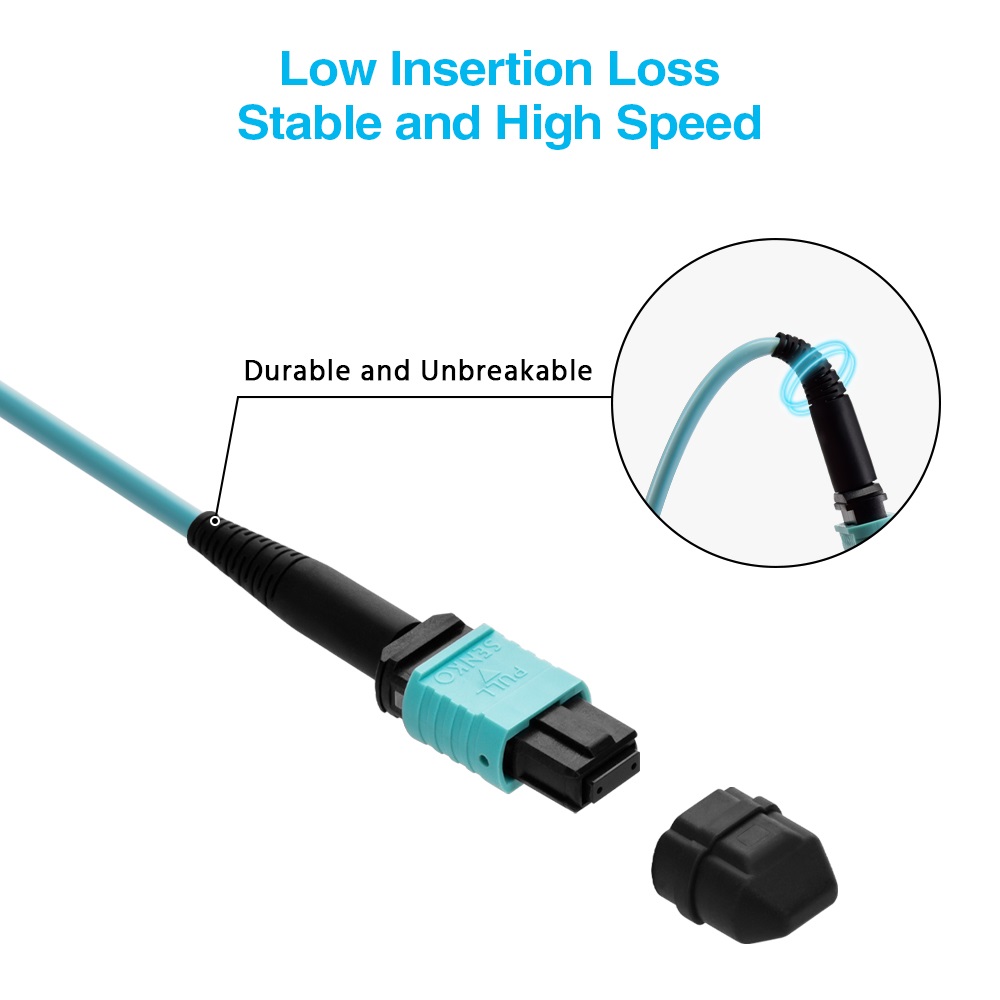

| Insertion Loss | 0.35dB (0.15dB Typ.) | ||
| Jacket OD | 3mm | ||
| Fiber Mode | OM3 50/125m | ||
| 40/100G Ethernet Distance | 150m at 850nm | ||
| 10/100G Ethernet Distance |
400m at 850nm |
||
| Jacket Material | OFNR | ||
| Temperature Range | -20°C +70°C |
