Networking Cat.6 Keystone Jacks Cat.6 RJ45 110 Type Keystone Jack Red

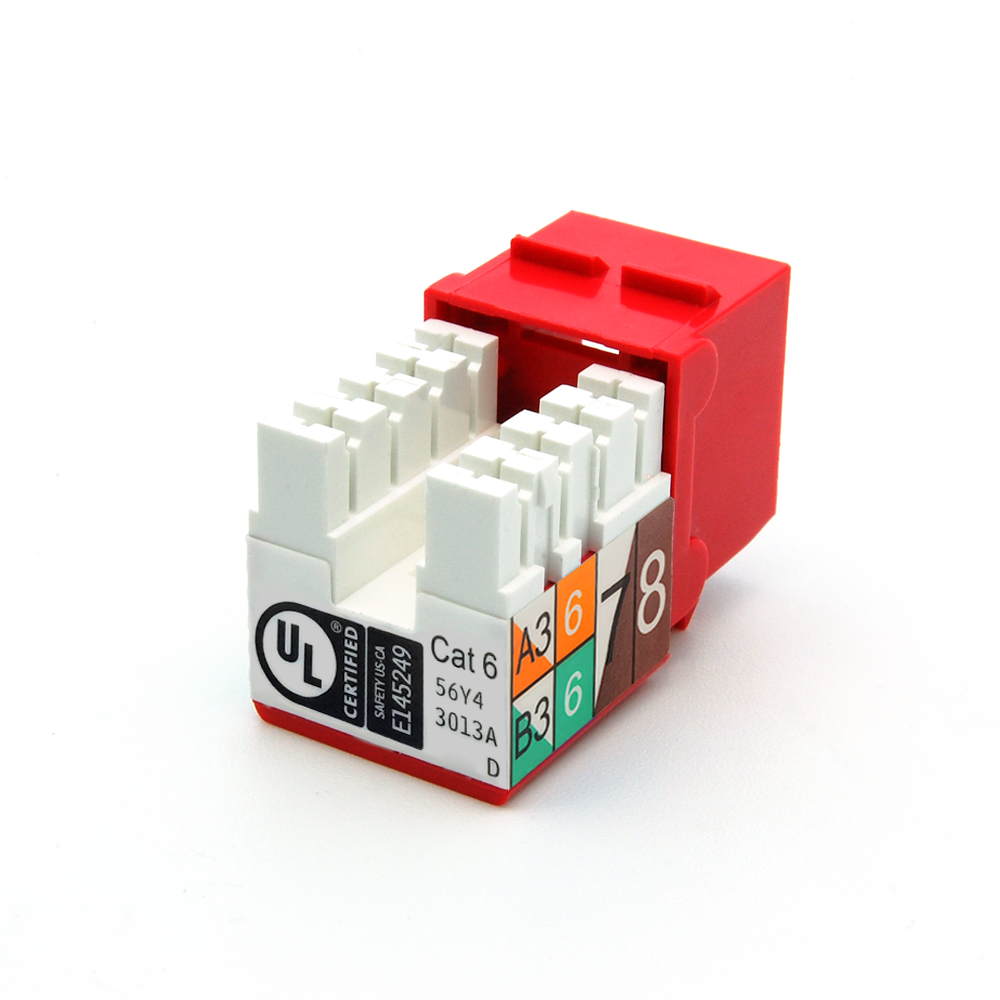

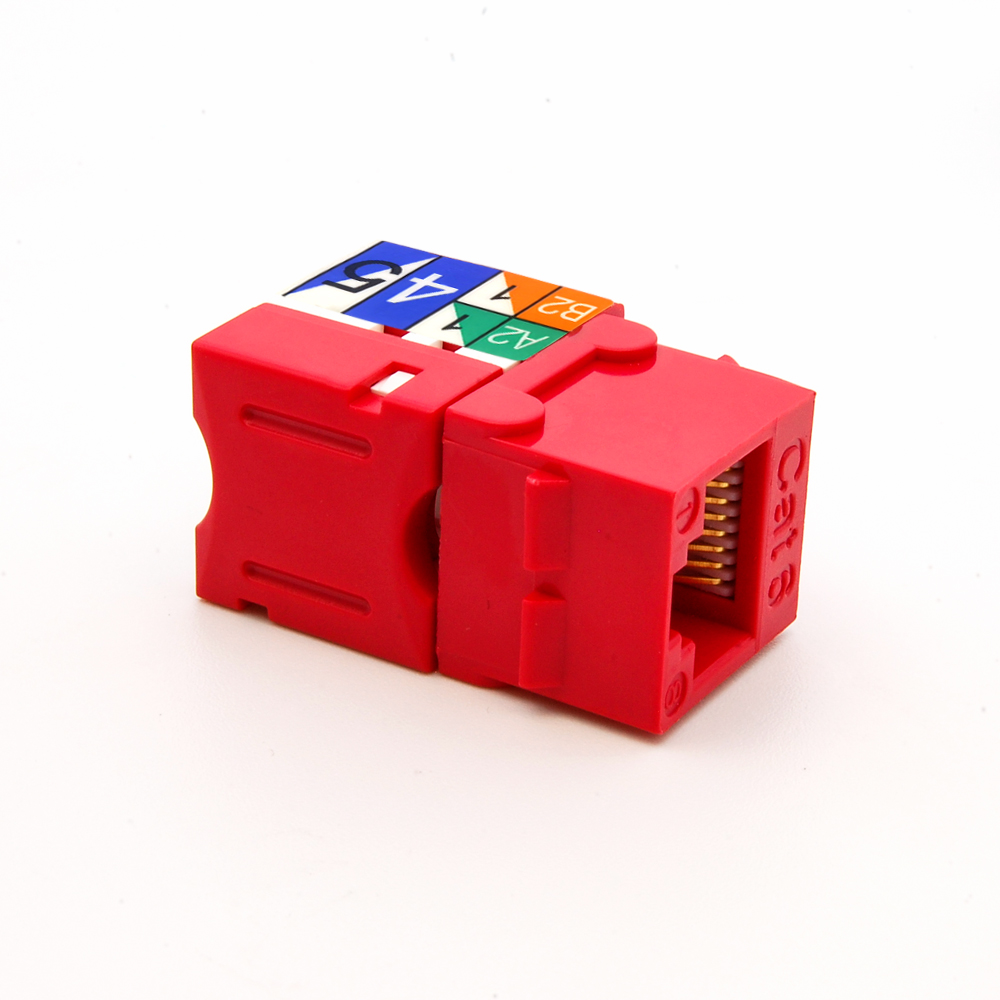

Cat.6 RJ45 110 Type Keystone Jack Red SKU: 101702RD

1+
$1.48
50+
$1.46
100+
$1.44
Business Member Pricing

Warranty:

  • 30-day money back guarantee
  • 15% restocking fee after 30days.
  • Safe SSL encrypted shopping

Description

Spec Drawing Packaging

Bestlink Netware's Cat.6 RJ45 keystone jacks are 8-position 8-conductor (8P8C) and are engineered to provide superior performance and reliability for data networks requiring maximum speed and bandwidth, supporting up to Gigabit Ethernet applications. The advanced printed circuit board design is tuned to provide optimum signal quality with maximum headroom, allowing it to exceed TIA/EIA Category 6 performance standards.

Features:

  • PCB technology provides maximum performance and superior signal quality.
  • Terminates easily with Bestlink Netware's 110 punch down tool.
  • 4 x 4 Termination Layout
  • Includes an integrated TIA-568A/B color wiring diagram.
  • Backwards compatible to all lower-rated category components.
  • Works with all Bestlink Netware Ethernet patch cables.
  • Available in 9 colors: Black, Blue, Gray, Green, Ivory, Orange, Red, White, Yellow

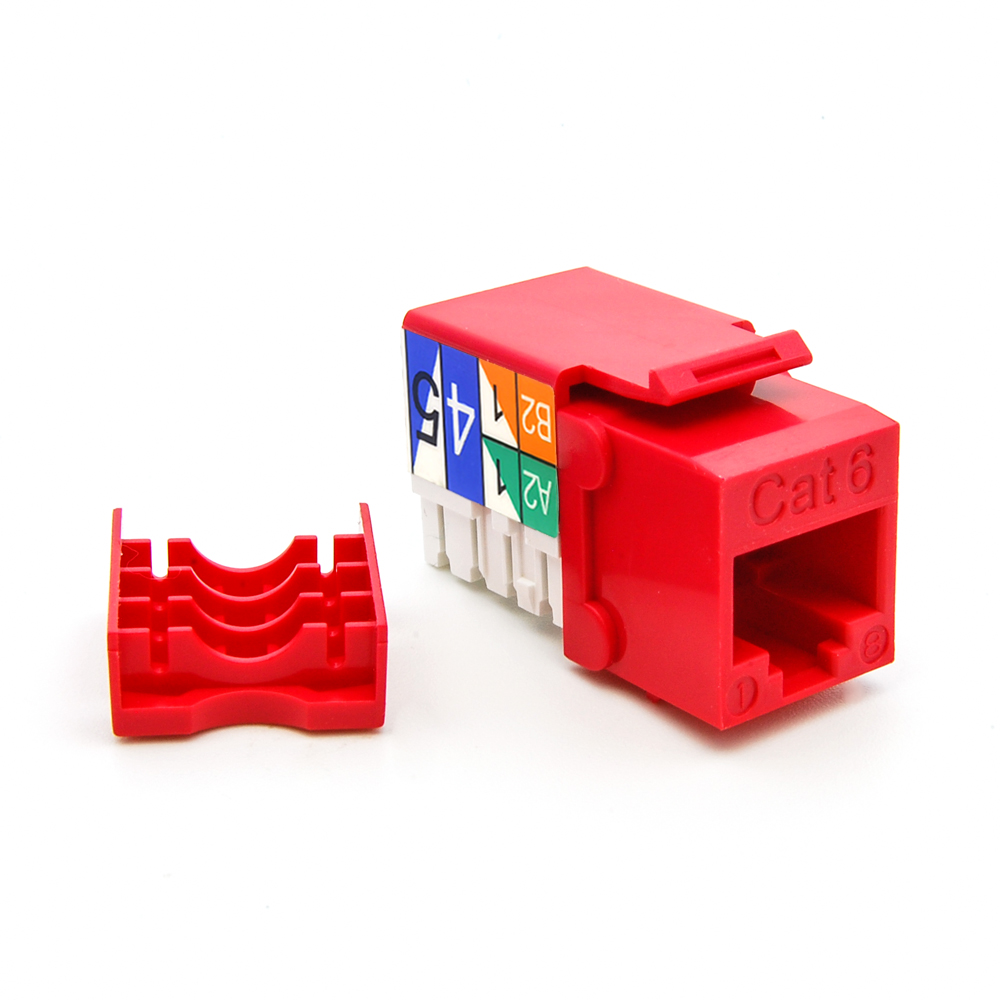

  • Termination Cap Included
  • Individually Packaged
  • UL listed
  • Compatible with all Bestlink Netware wallplates, surface mount boxes, and blank patch panels.

    Bestlink Netware RJ45 Keystone Jacks use 50-micron gold plated contact pins that are non-corrosive and ensure long-term connectivity.

    Why 50-Micron?

    Specifications:

    • Material Flame Rating UL 94V-0
    Applicable Wire Gauge 22AWG ~ 26AWG Solid and Stranded Wire
    Jack Contacts 50-Micron Gold Plating
    Operating Life 750 Insertions
    IDC Contacts 100 Micron Nickel Plating
    Operating Life 250 Reterminations
    Wiring T568A& B Compatible
    Compatibility Category 6, 5 & 3
    Safety Compliance UL 1863, UL/cUL listed
    Shield Type 50~60-Micron Nickel Plating over Phosphor Bronze
    Applications 10Base-T, 100Base-TX Fast Ethernet
