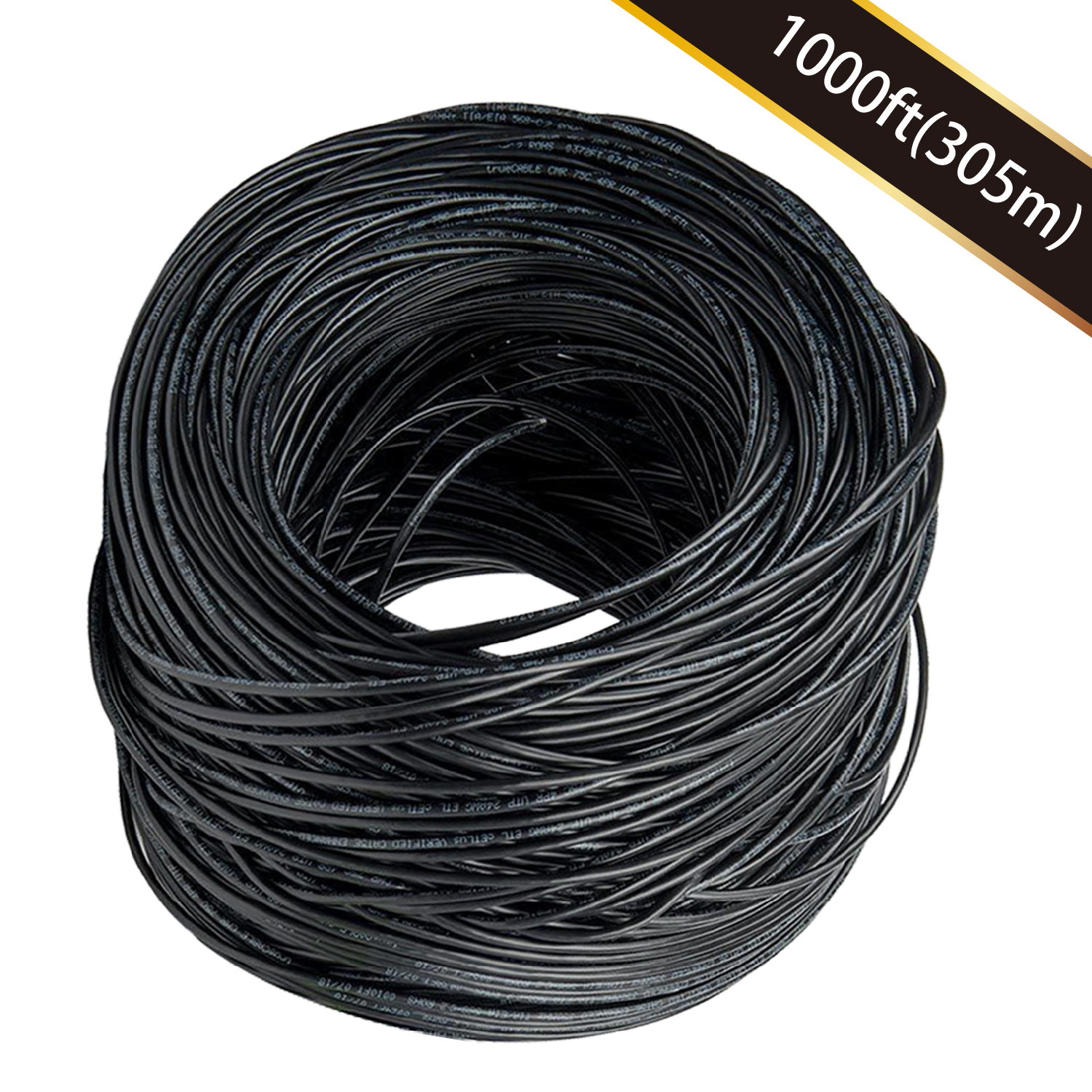

1000ft Cat.6 UTP 23AWG Solid CMR Bulk Cable Black, UL Listed SKU: 100961BK

Data Sheet

Cat.6 cable is used for computer networking (10/100/1000BASE-T/1000BASE-TX ), data, voice, or security system installation. Wiring your home, home office, office or even an entire factory, BestLinknetware.com has the variety of choice for you. Bulk solid cable is available in CMR (Riser) and CMP (Plenum) rated jackets. Our bulk cable is also available in various colors so you can easily identify and color-code you wiring.

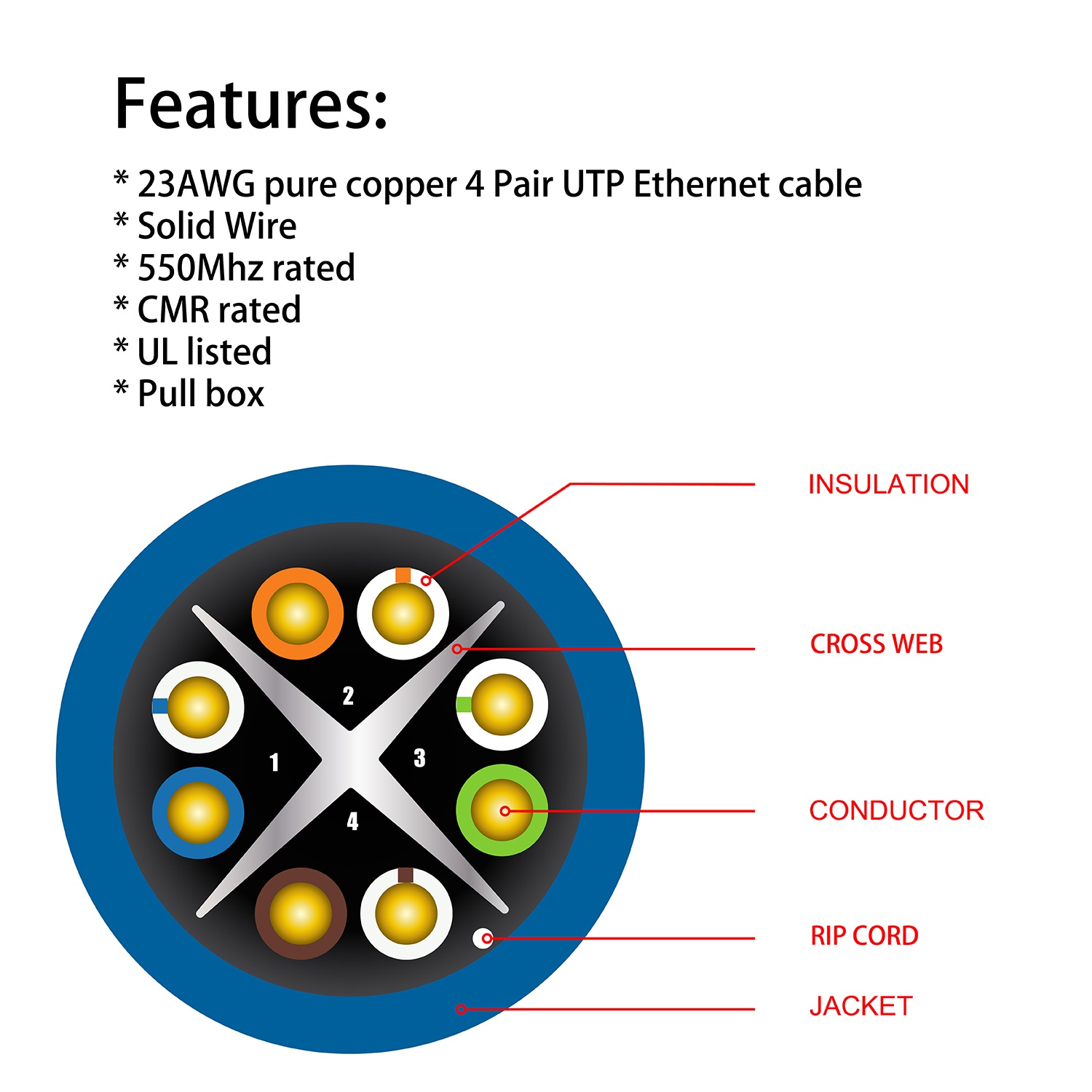

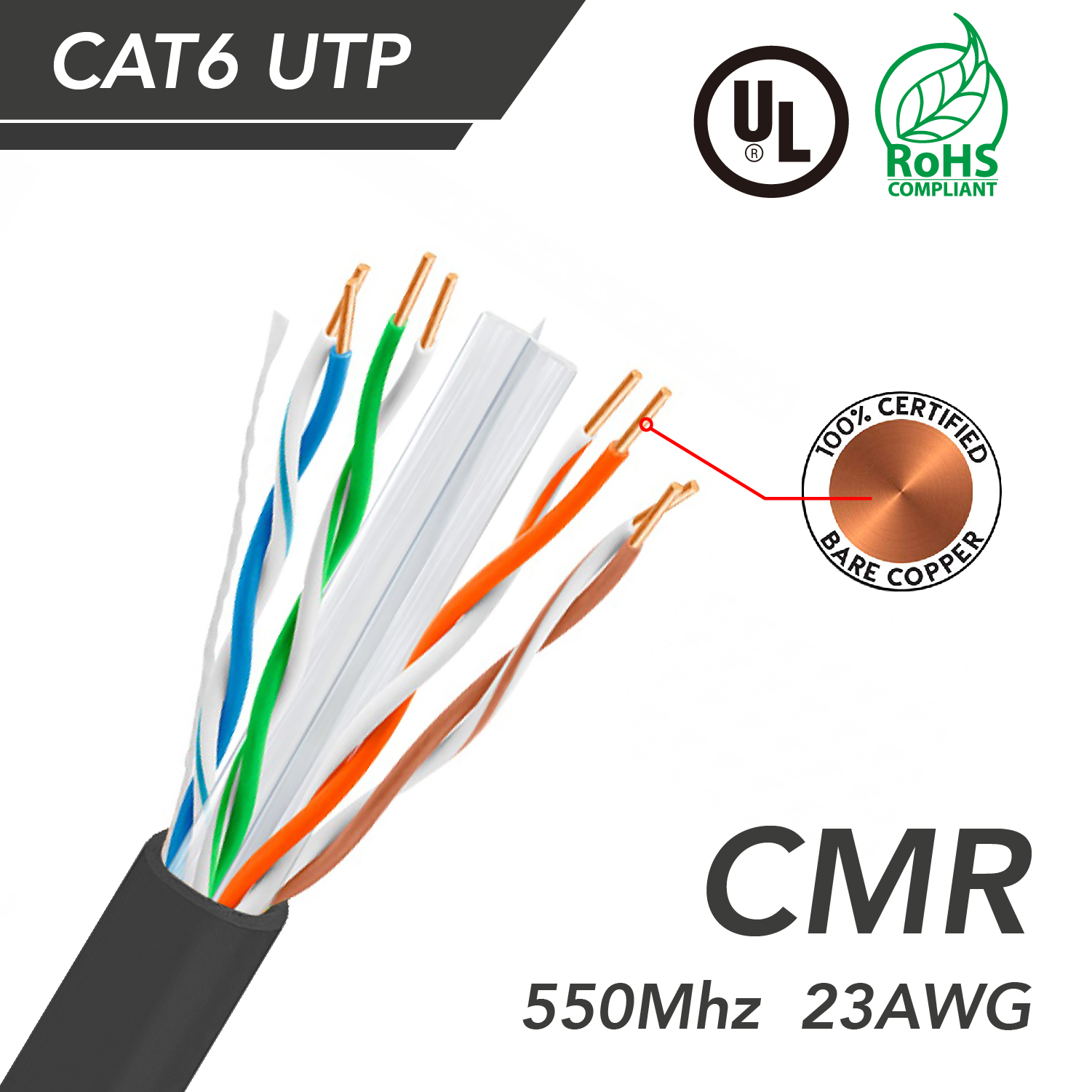

* 23AWG pure copper 4 Pair UTP (Unshielded Twisted Pair) Ethernet cable
* Solid Wire
* 550Mhz Rated
* CMR Rated
* UL Listed

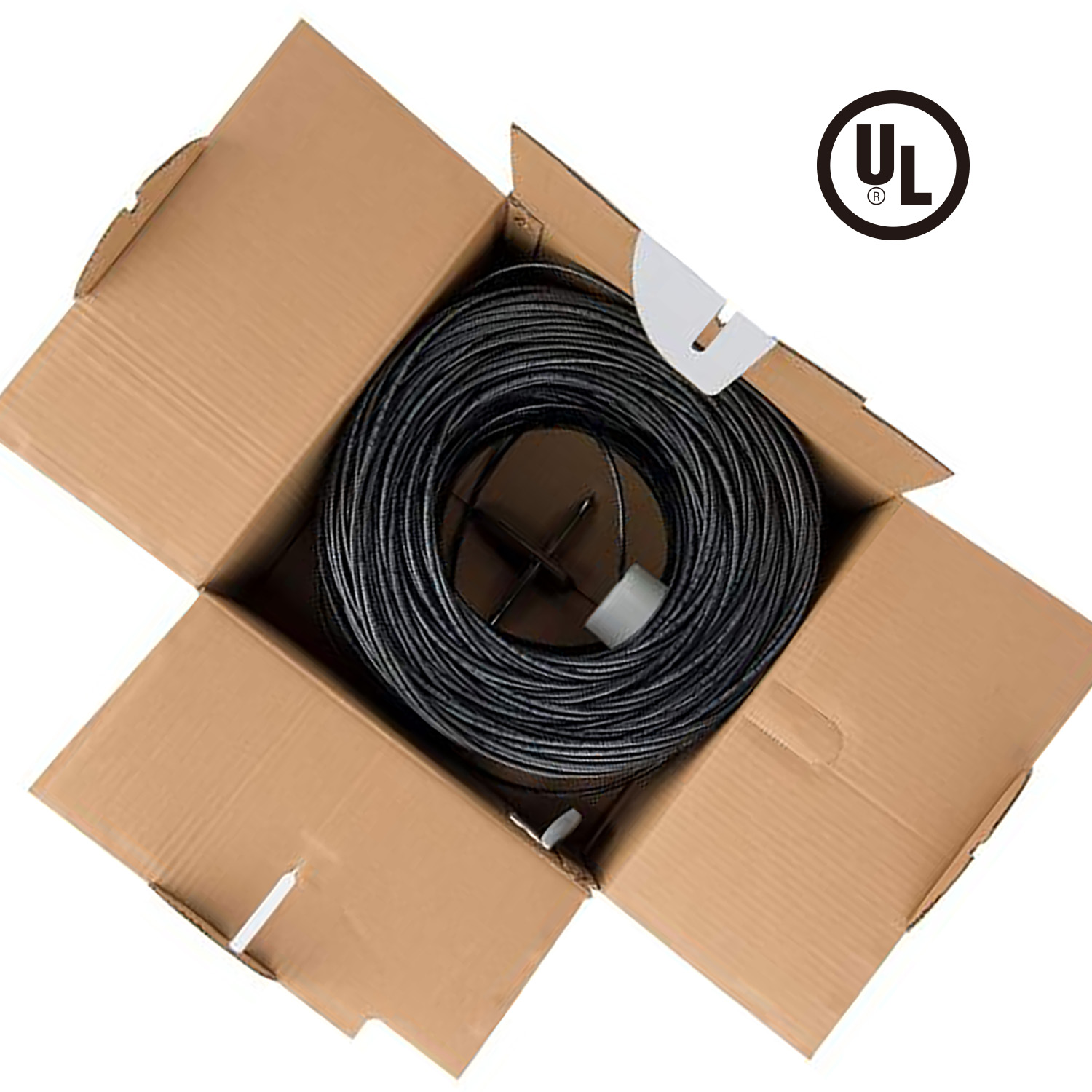

* Pull Box

Solid vs Stranded:
Solid wire consists of one piece of metal wire.
Stranded wire is composed of a bundle of thinner wires.

Pros of Solid Wire:
* Less Expensive than stranded wire
*More compact diameter for the same current carrying capability as stranded
* Less likely to fail due to corrosion

Cons of Solid Wire:
* Typically only available in small gauges
* Continuous flexing or vibration will cause the wire to fatigue and break
(Commonly used for in-wall wiring where flexibility is not required)

Pros of Stranded Wire:
* Very flexible and withstands a greater amount of flexing and vibration
* Easier to rout

Cons of Stranded Wire:
* Diameter is larger for the same carrying capability as solid
* More costly than solid wire
* More likely to fail due to corrosion from capillary action & a high surface area

CMR: The 'R' in CRM is for 'Riser'. Riser type cables are engineered to prevent the spread of fire from floor to floor and are suitable for vertical shaft applications.

CMP: The 'P' in CMP is for Plenum. Cables meeting type CMP requirements are suitable for installation in ducts and plenums without the use of conduit. These cables are designed for fire resistance and low-smoke and toxin producing characteristics.

CM/CMH/CMG: CM is used for general building wiring such as residential house. CM cables are used in areas where CMP or CMR is not required.
