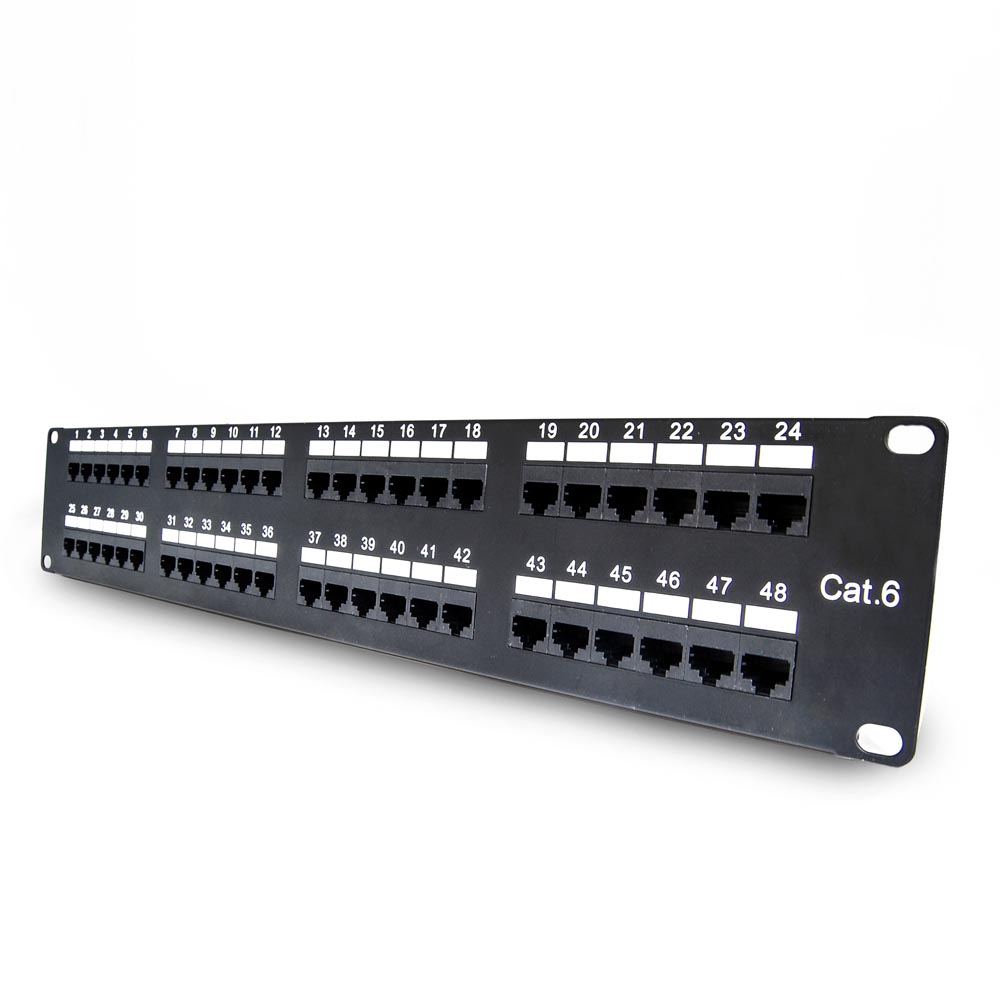

Cat.6 110 Type Patch Panel 48Port Rackmount
SKU: 102193
Business Member Pricing
Warranty:
- 30-day money back guarantee
- 15% restocking fee after 30days.
- Safe SSL encrypted shopping
Description
Spec Drawing
UL approved
19 inch 2U rackmount
Meets TIA/EIA-568B.2/568B.2-1 Cat.6, ISO/IEC 11801 and EN 50173-1 specification

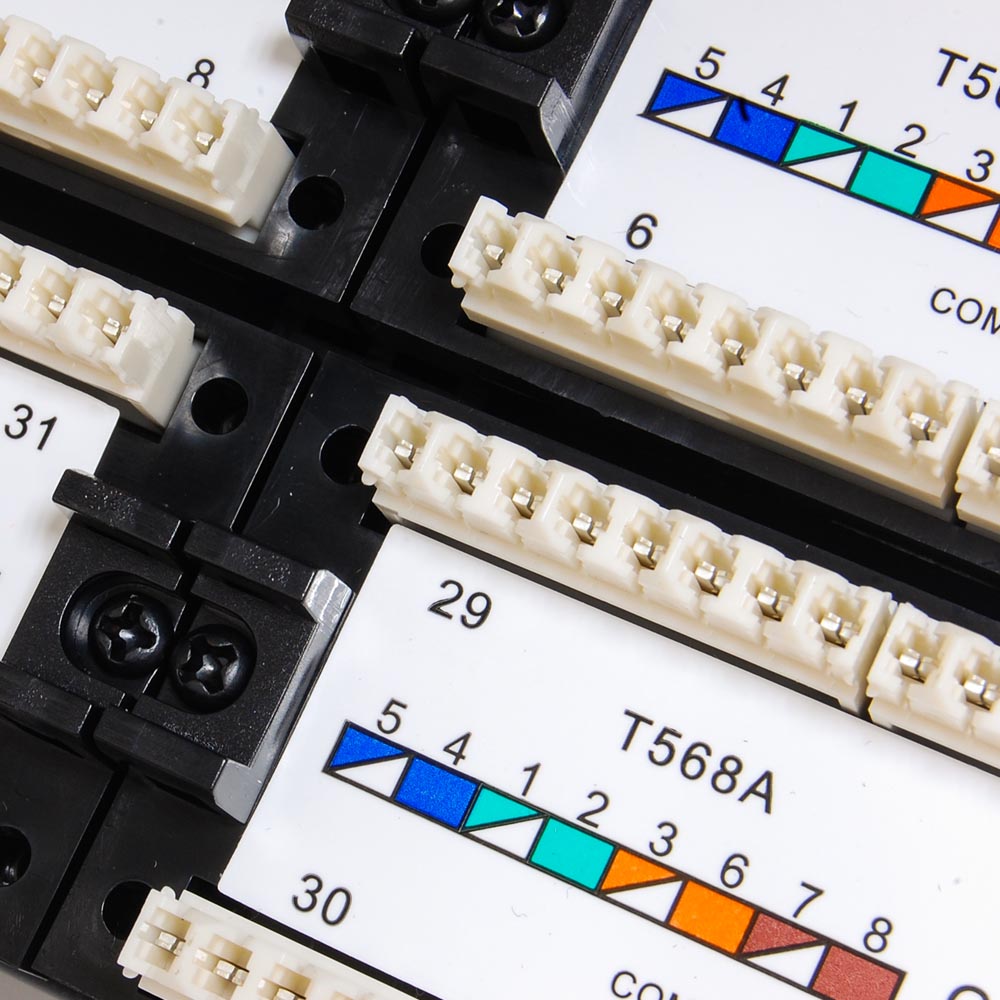

Support T568A & B wiring
Wire diameter: 22 ~ 26AWG
Insulation diameter range: 0.70 to 1.40mm
Jack contacts: Phosphor bronze, 50micron gold plate over nickel plating.
IDC contacts: Phosphor bronze, 50micron gold plate over nickel plating.
Safety: UL1863
Flammability: UL 94 VO
Operating temperature: -40 to +70 degree Celsius
Weight: 1.55LBS
Mounting Hinge: 102216
25 years warranty
UL # E179602
