Features:

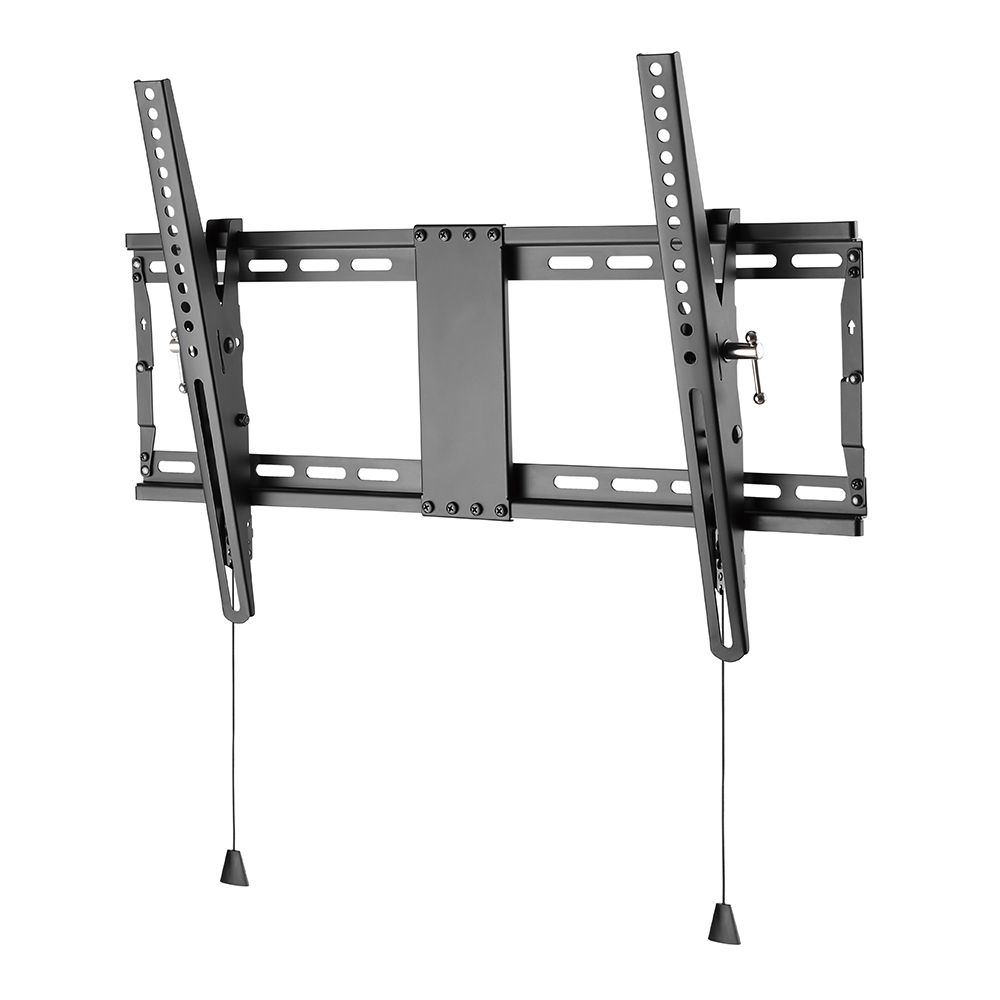

Open Architecture Design - Provides increased ventilation and easier access to wires.
Folding design saves space and shipping cost.
Tilt Design - Allows for the best viewing angle.
Anti-Theft Locking Hole - Provides additional security, preventing any unwanted removal (padlock required, sold separately).
Automatic spring locks with quick release cords allow quick and easy TV removal.
Material | Steel | ||
Color | Matte Black | ||
Surface Finish | Powder Coating | ||
Compatible Screen Size* | 37"~80" | ||

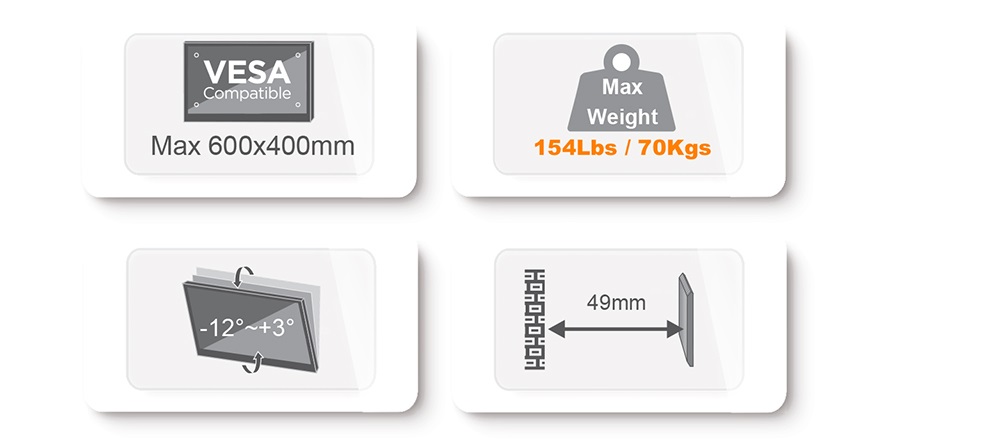

Max VESA | 600x400mm | ||
Weight Capacity | 154Lbs (70kg) | ||
Profile | 1.9" (49mm) | ||
Tilt Range | -12°~+3° | ||
Installation | Solid Wall, Double Stud (406 / 450 / 600mm) | ||
Panel Type | Detachable Panel | ||
Wall Plate Type | Fixed Wall Plate | ||
Bubble Level | Hook-on Bubble Level (included) | ||
Cable Management | No | ||
Anti-Theft | Yes | ||
Fits Curved TV | Yes |
* Note: Supported screen size is provided as a reference only. Please check the bracket dimensions above and make sure the overall bracket size does not exceed your TV.
