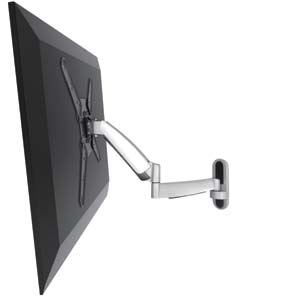

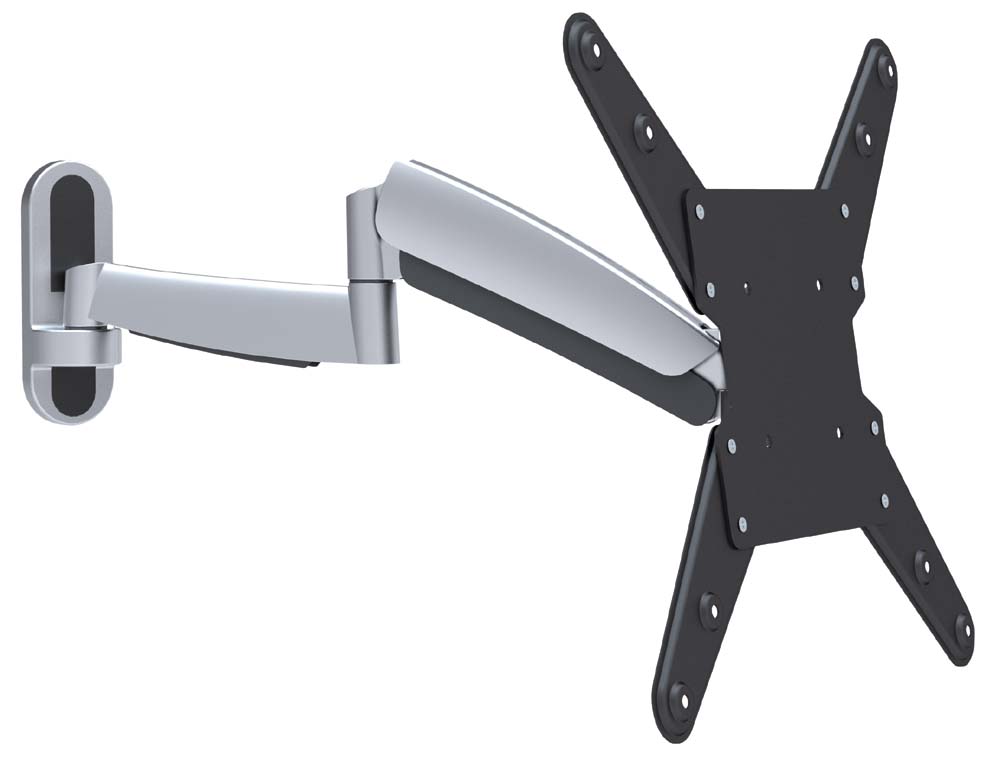

Counterbalance TV Mount for 26~47" w/22.8" Arm Fullmotion, Max 400x400mm VESA, LDA08-442 SKU: 502872

Spec Drawing Assembly Guide Large Image Packaging

** Free freight does NOT apply to this item. **

Screen size	Max load	VESA hole pitch
Tilt	Swivel	Wall to TV

The counterbalance ergonomic arm provides maximum flexibility for freely positioning and excellent features that distinguish greatly from a normal arm. Each arm can hold screen up to 20kgs (44lbs). Built-in spring tension gauge can be easily adjusted to fit varied weights that arm holds. Advanced VESA plate includes -15° to +15° of fingertip tilt that enable both sit to stand and touch screen applications. The plate also allows +3° ~-3° screen level adjustment. A hidden cable management integrated in arm easily conceals cables beneath channel covers.

* For 23 to 42" screen size LCD or LED TV
Note: Supported screen size is provided as a reference only. Please check bracket dimensions above, and make sure overall braket size does not exceed TV.
* Tilt : 15° up ~ +15° down
* Swivel : 90° left / 90° right
* Max Load Capacity: 44lbs (20kg)
* Universal mounting pattern
* VESA hole pitch : Max: : 400 x 400mm (16" x 16")
* TV to wall: Min: 2.2" (55mm), Max: 22.8" (580mm)
* Mounting hardware included
* Package weight:12lbs
* Package size: 20 (L) x16(W) x 3.5" (H)
* Master cartonb qty: 2 units xx

** 1 inch = 25.4mm, 1lbs = 0.454Kg **
