Features:

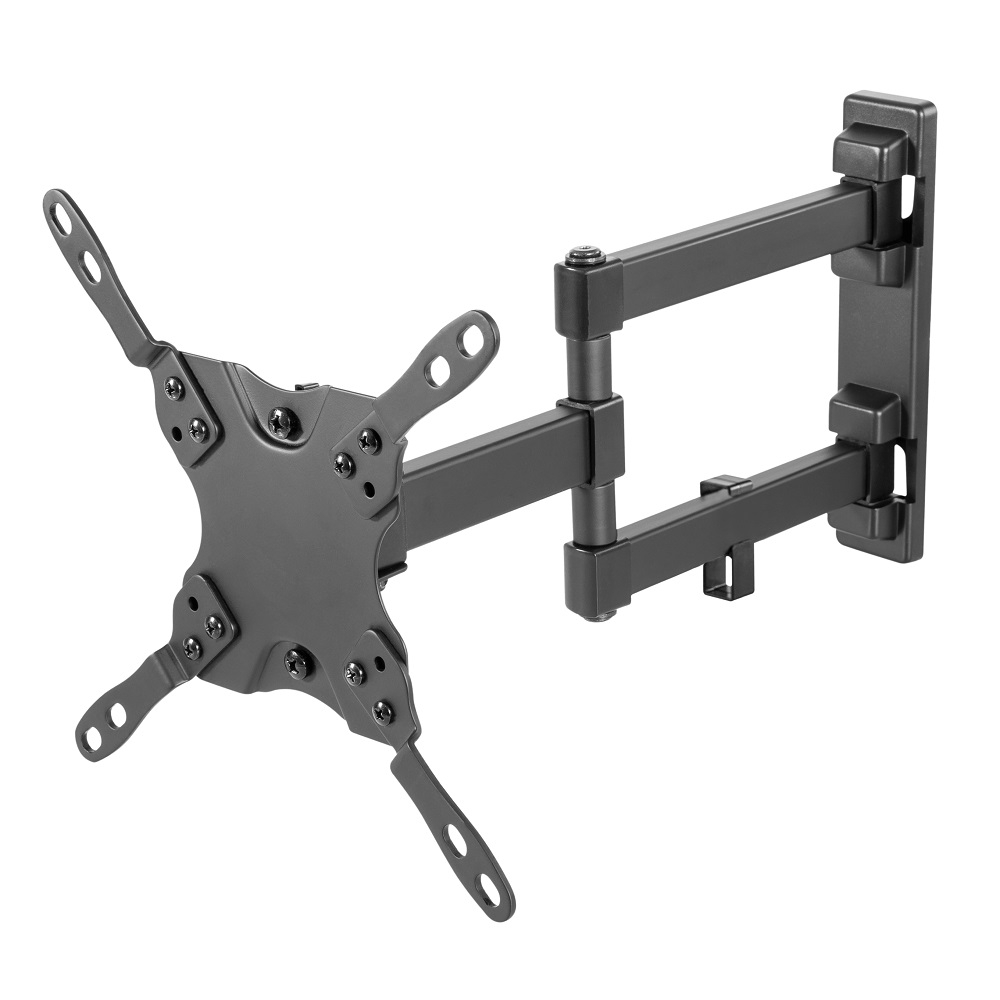

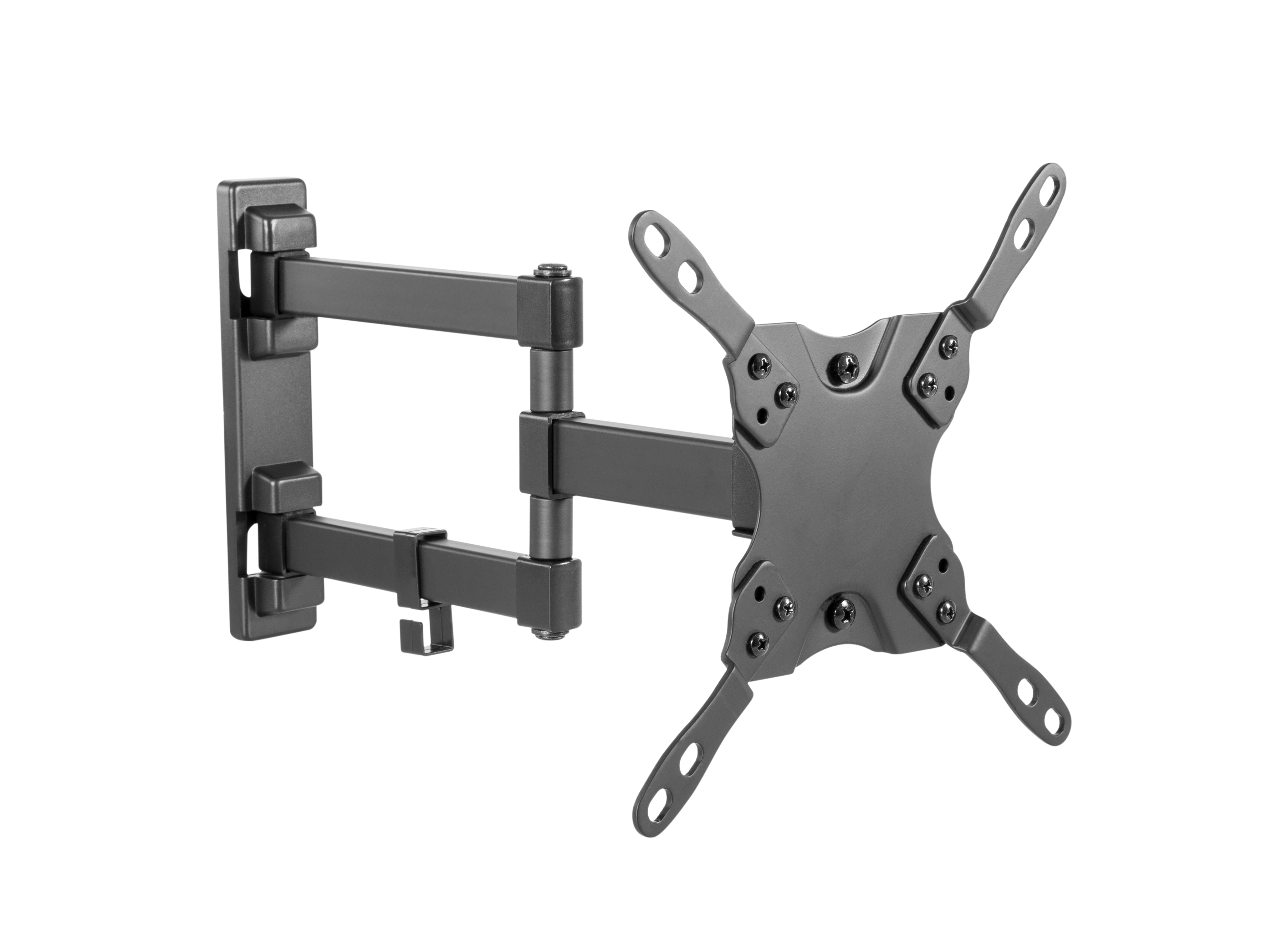

Full Motion Design - Tilts and swivels for multiple viewing angles.
Cable management hook allows you to easily keep cables out of view.
Built-in leveling adjustment ensures perfect wall positioning.
High quality powder-coated finish provides a stylish anti-scratch surface.
Material | Steel, Plastic | ||
Color | Matte Black | ||
Surface Finish | Powder Coating | ||
Metal Sheet Thickness | Wall Panel: 0.098" (2.5mm) Connection: 0.079" (2mm) |
||
Compatible Screen Size * | 13"~42" | ||
Dimensions | 14.3"x8.7"x8.7" (364x220x220mm) | ||

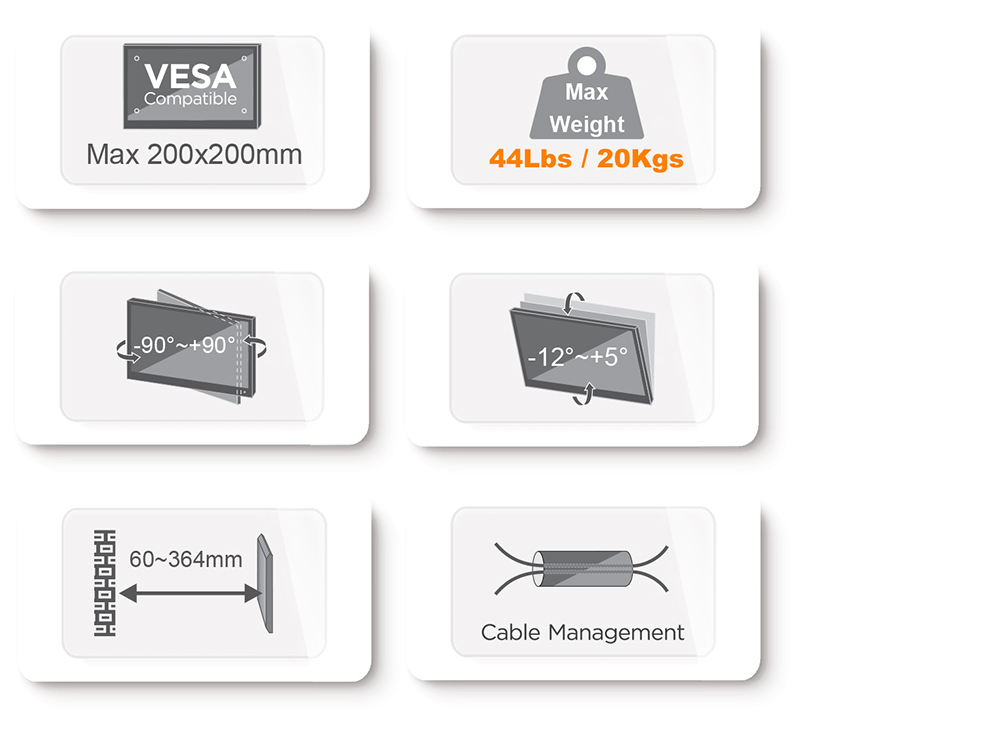

Max VESA | 200x200mm | ||
Weight Capacity | 44Lbs (20kg) | ||

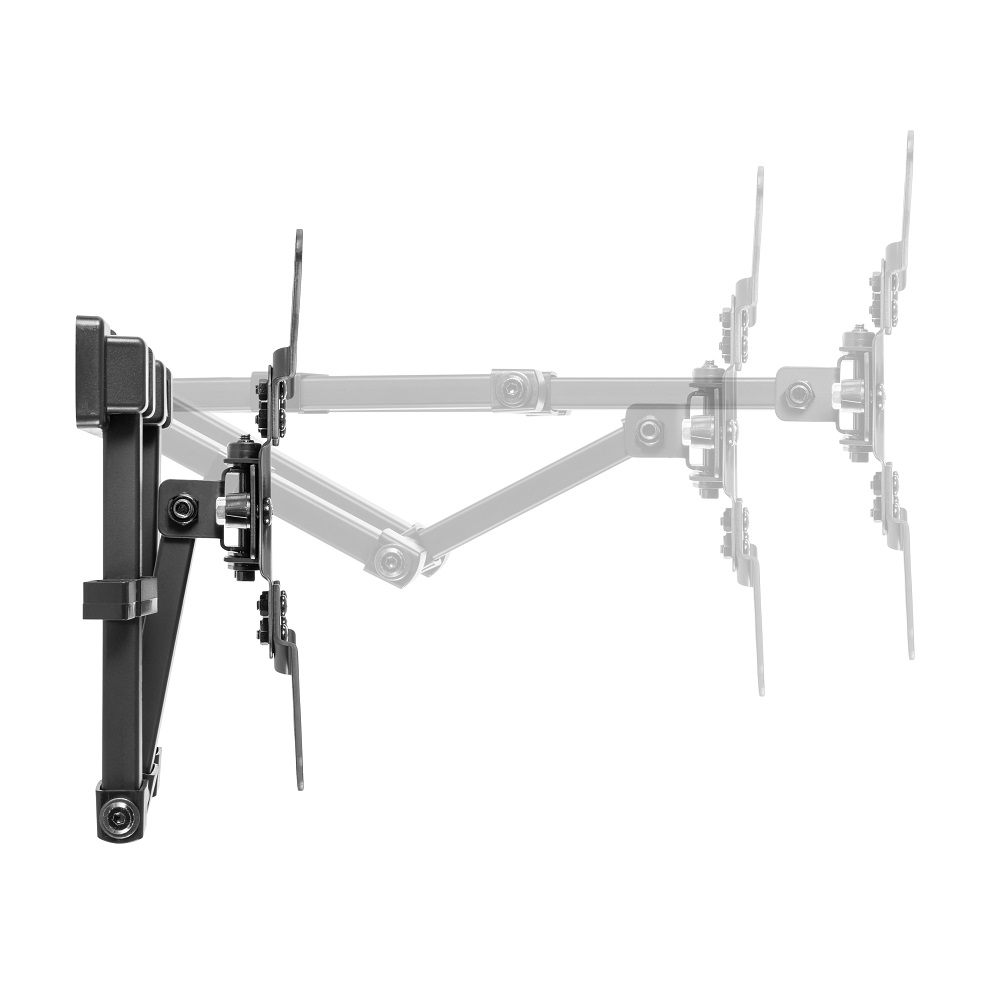

Profile | 2.4~14.3" (60~364mm) | ||

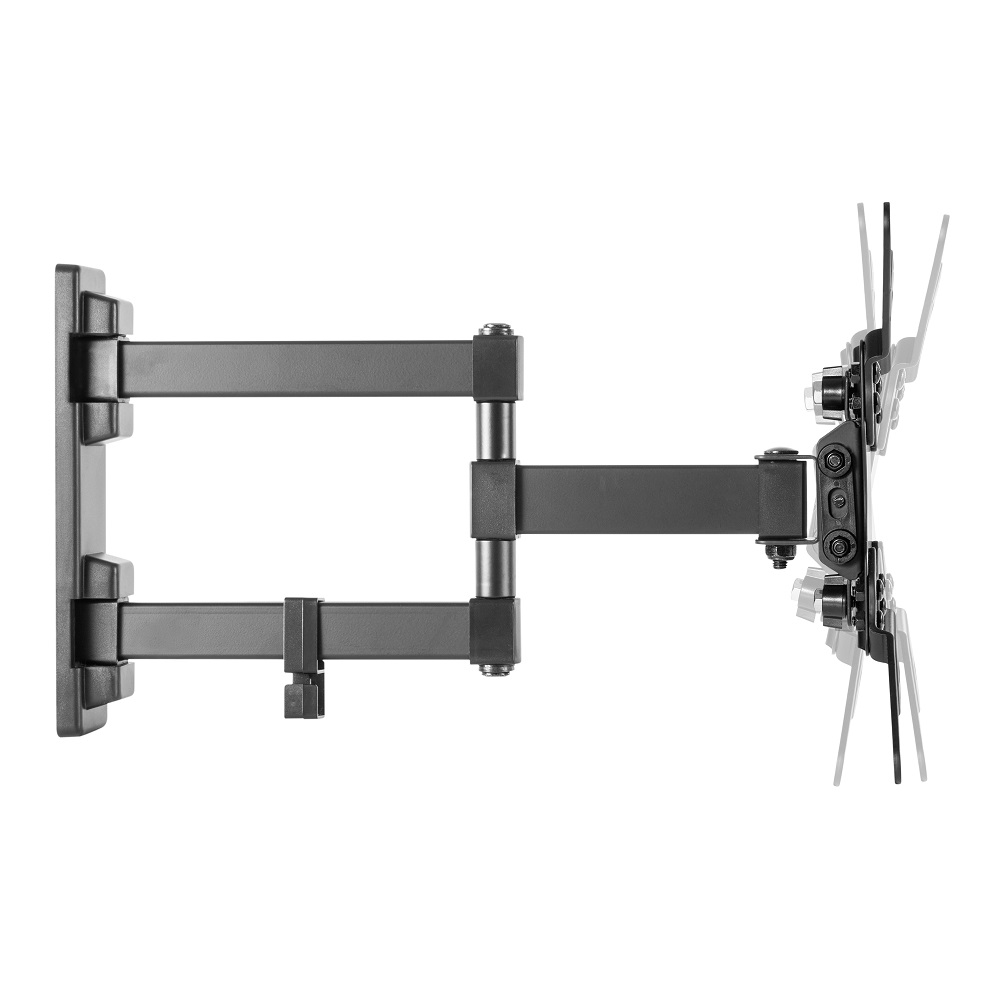

Tilt Range | -12°~+5° | ||
Swivel Range | -90°~+90° | ||
Installation | Solid Wall, Single Stud | ||
Panel Type | Detachable Panel | ||
Wall Plate Type | Fixed Wall Plate | ||
Cable Management | Yes | ||
Anti-Theft | No | ||
* Note: Supported screen size is provided as a reference only. Please check the bracket dimensions above and make sure the overall bracket size does not exceed your TV.
