Features:

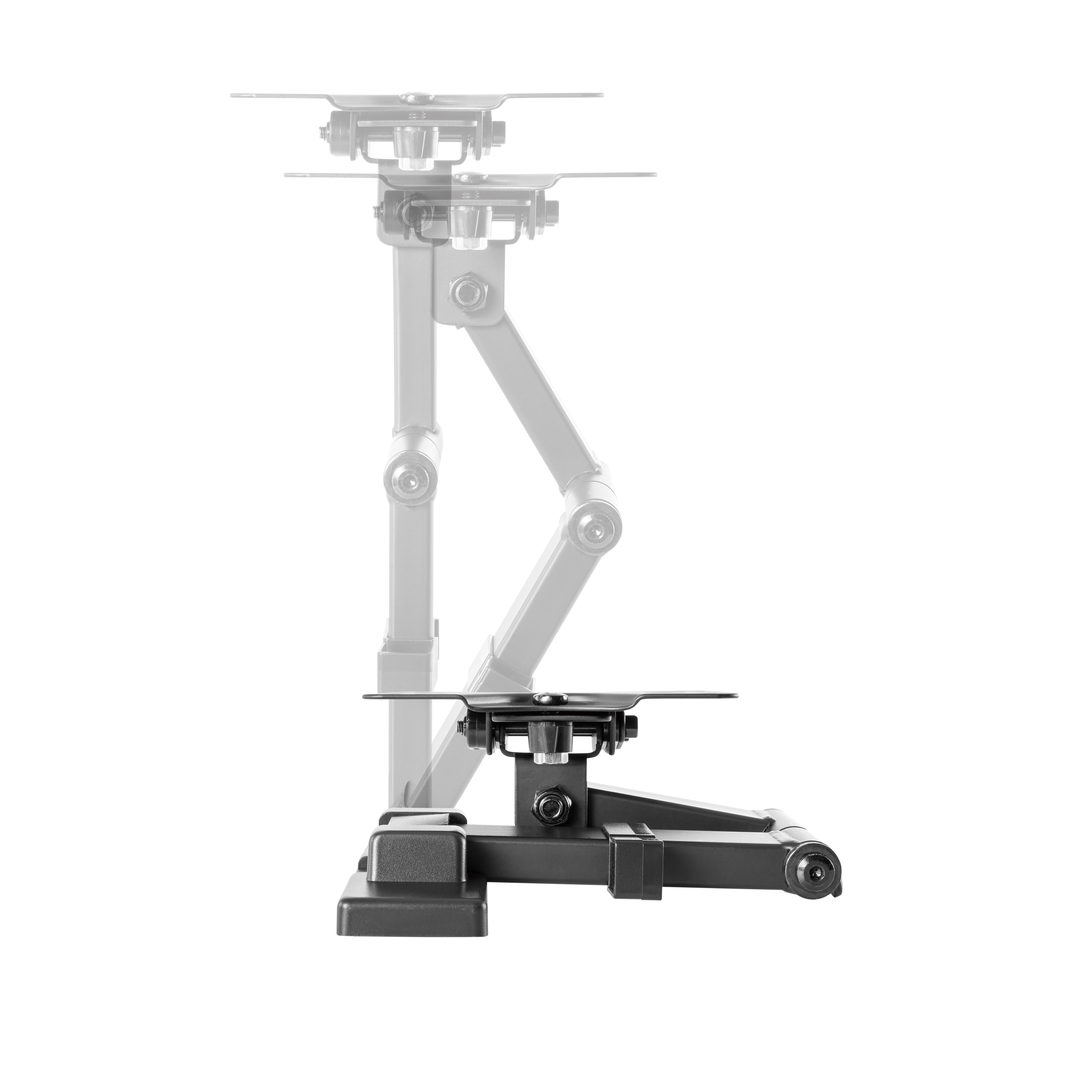

Free-Tilting Design: makes easy forward or backward adjustment for better viewing.

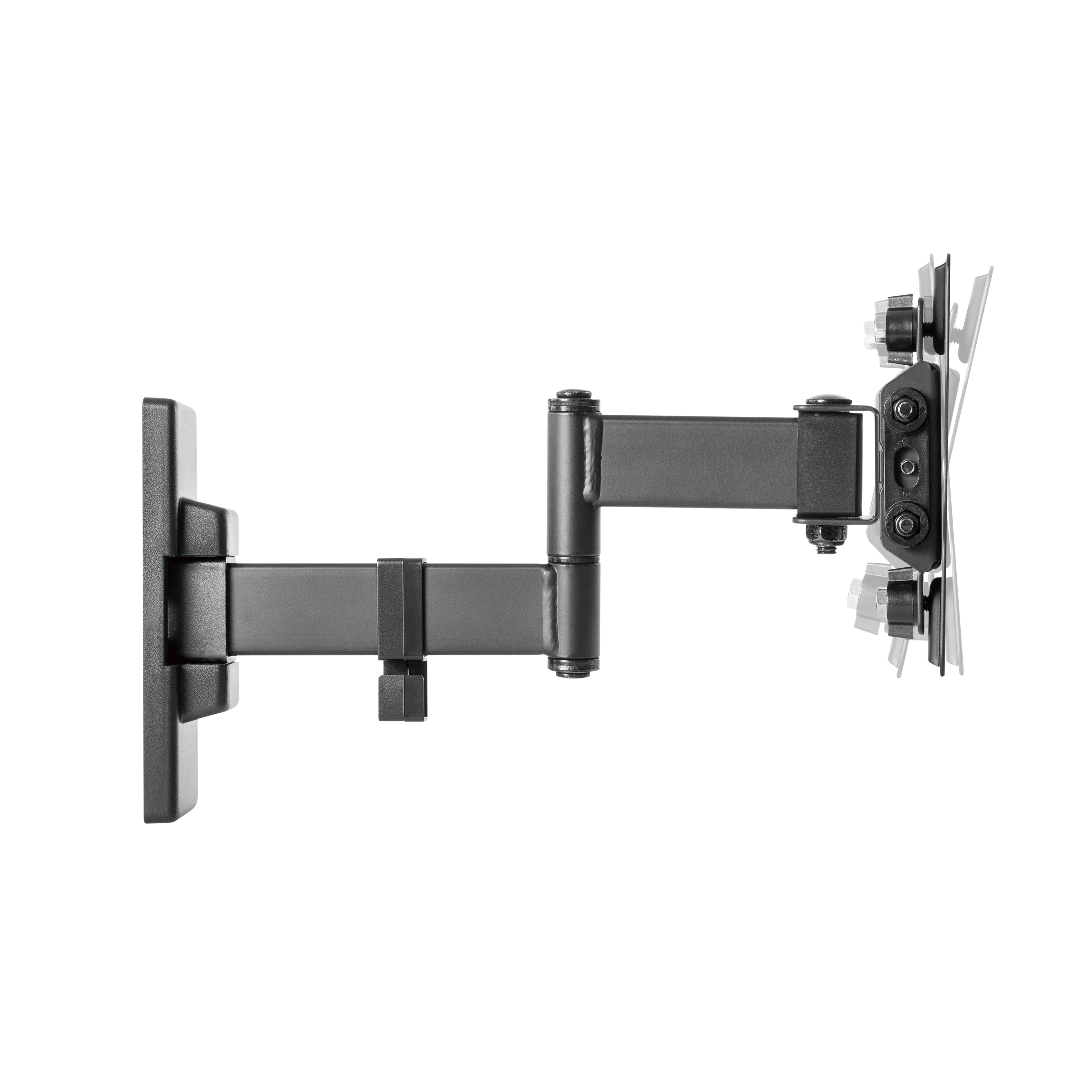

Swiveling Arm(s): offer(s) maximum viewing flexibility (makes every seat the best seat)
Built-in leveling adjustment ensures perfect wall positioning.

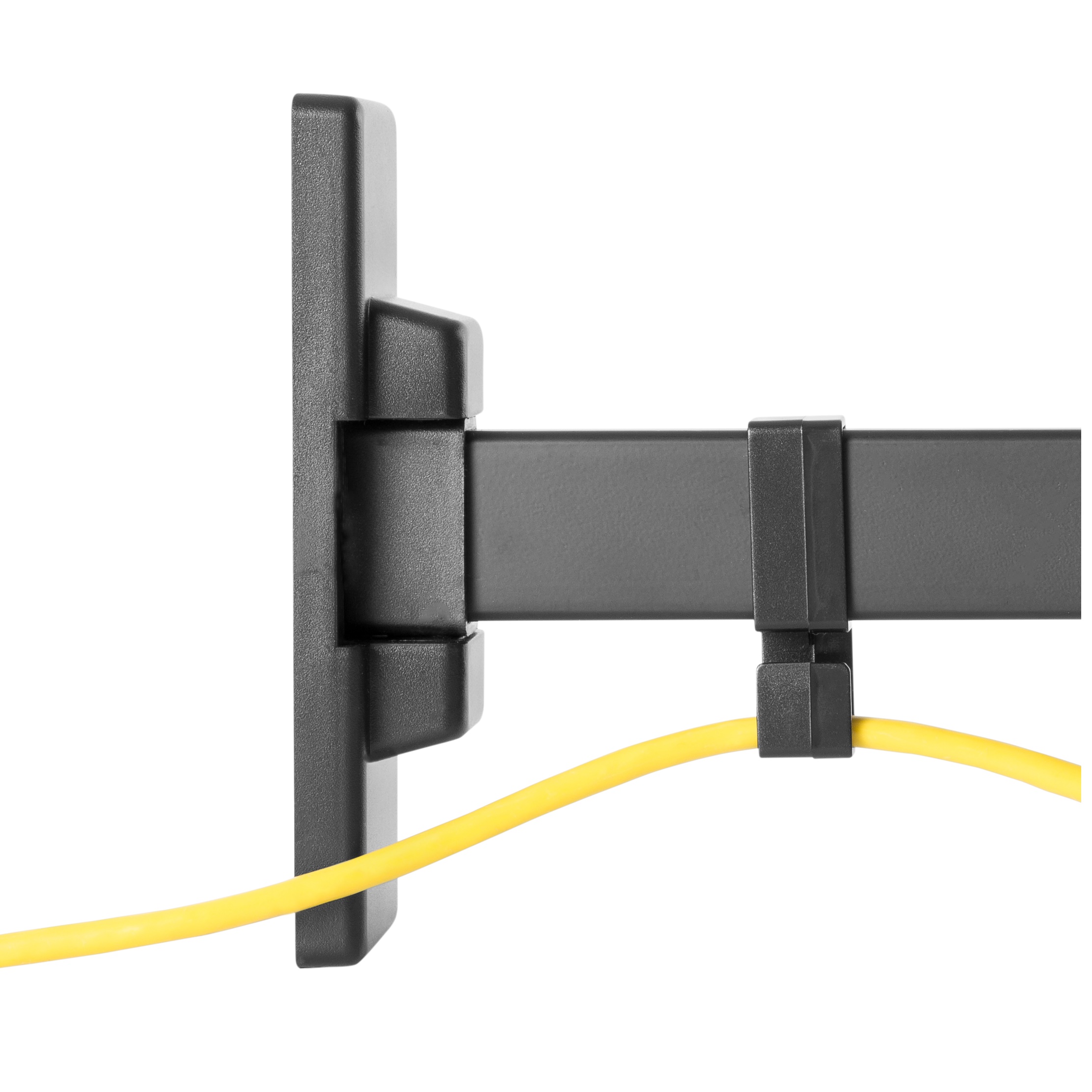

Cable Management: keep everything organized.

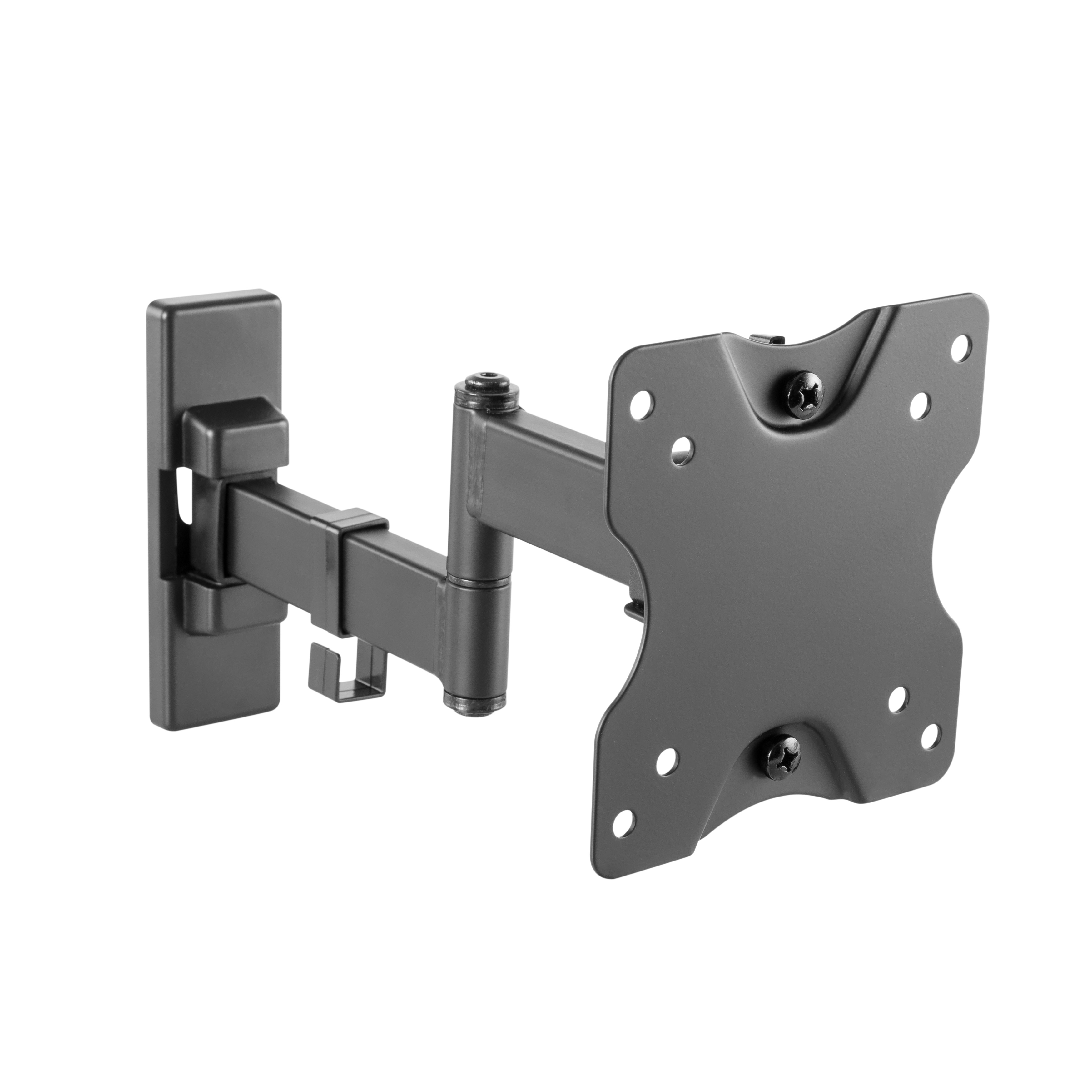

Detachable VESA Plate Design: enables easy installation

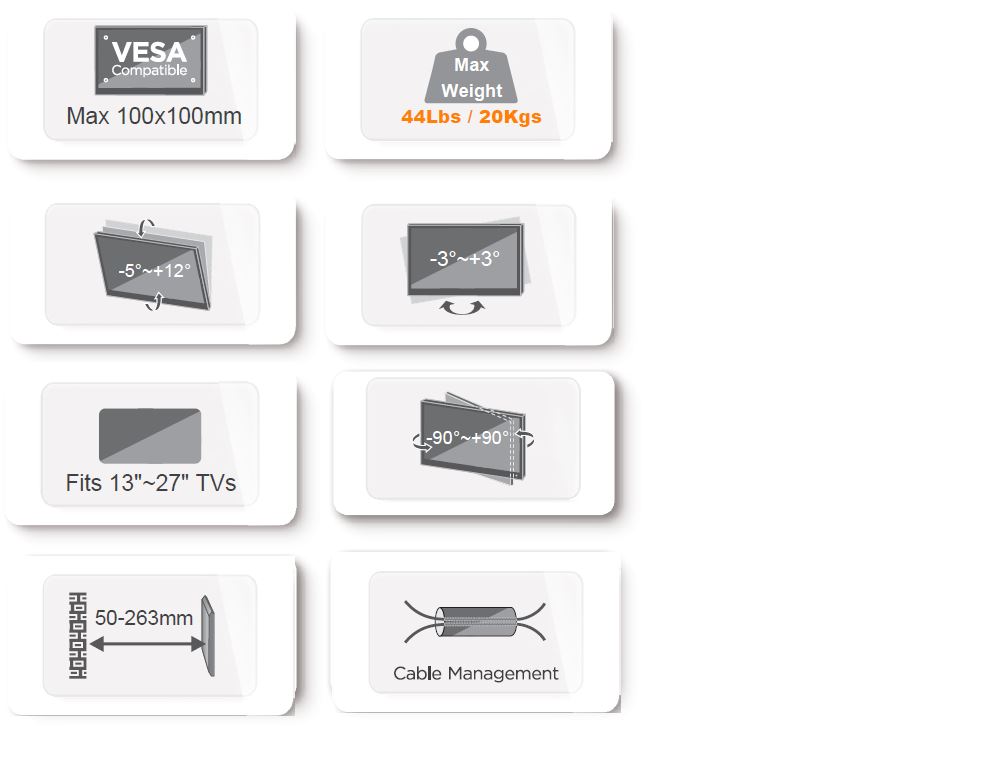

Material | Steel, Plastic | ||
Color | Matte Black | ||
Surface Finish | Powder Coating | ||
Metal Sheet Thickness | Wall Plate THK=2.5mm VESA Panel THK=1.5mm |
||
Compatible Screen Size * | 13"~27" | ||
Dimensions | (10.4"x4.6"x5.4" (263x118x136mm) | ||
Max VESA | 200x200mm | ||
Weight Capacity | 20kg (44Lbs) |
||
Profile | 50~263mm (2"~10.4") |
||
Tilt Range | 5°-12° |
||
Swivel Range | -90°~+90° | ||
Installation | Solid Wall, Single Stud | ||
Panel Type | Detachable Panel | ||
Wall Plate Type | Fixed Wall Plate | ||
Cable Management | Yes | ||
Anti-Theft | No | ||
* Note: Supported screen size is provided as a reference only. Please check the bracket dimensions above and make sure the overall bracket size does not exceed your TV.
