RJ45 Pinout

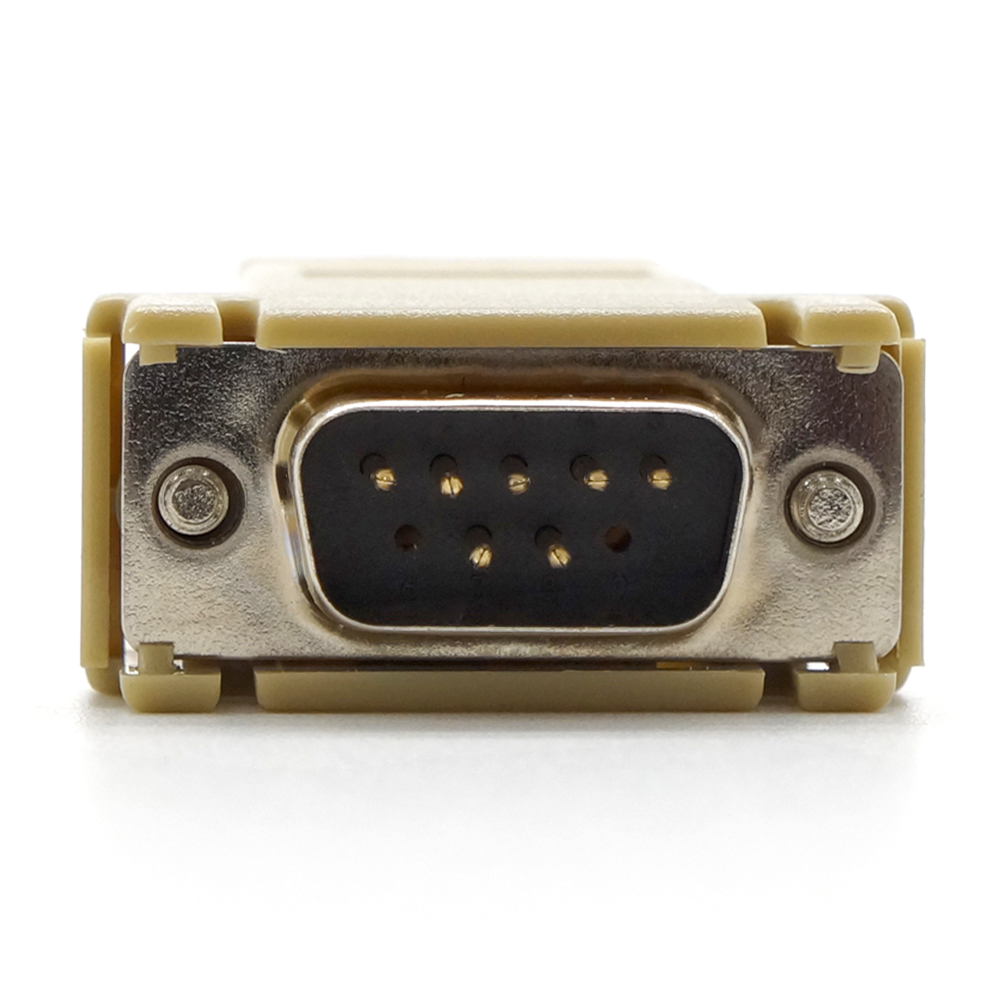

RJ45 -- Color -- DB9 Male
1 ------ Blue -- 8
2 ----Orange -- 7
3
4 ----- Red ----- 3
5 -----Green ----2
6 -----Yellow -- 5
7 -----Brown --- 1
8 -----White ----4
Gold plated pin
28AWG wire

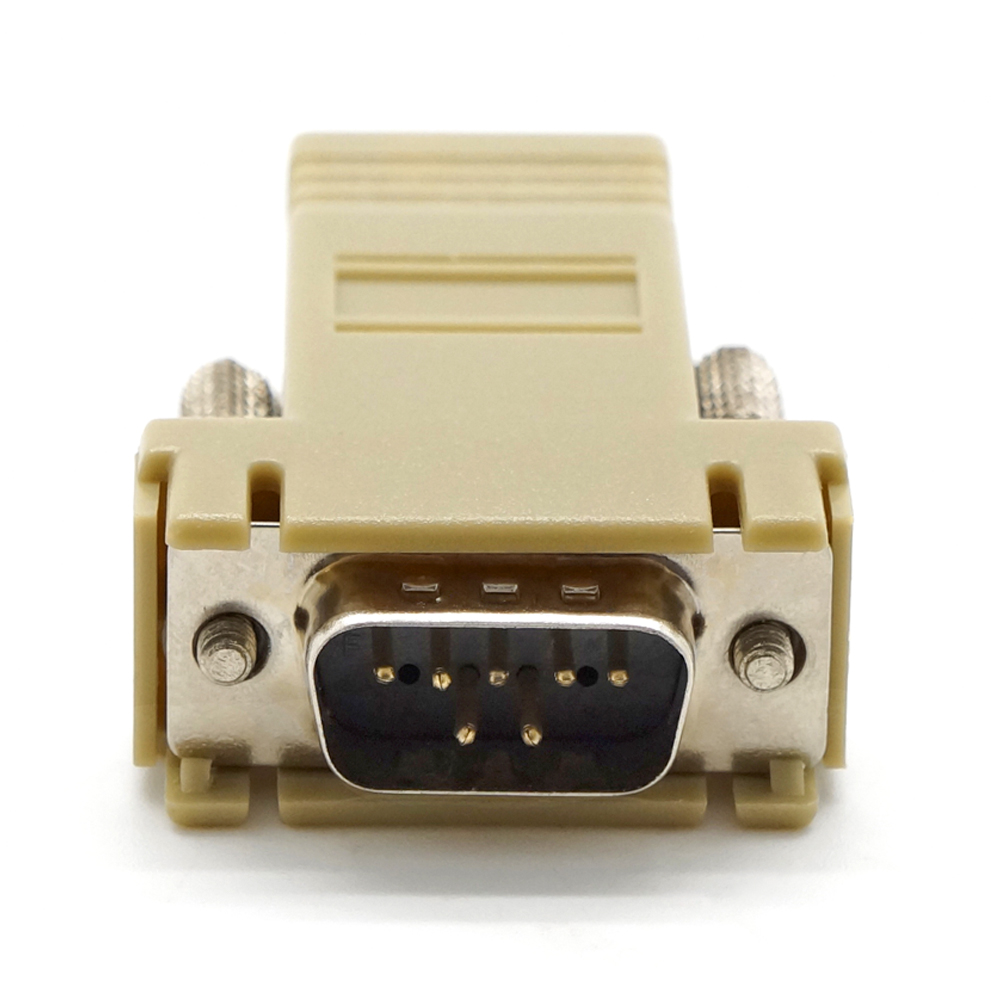

Molded ivory color housing

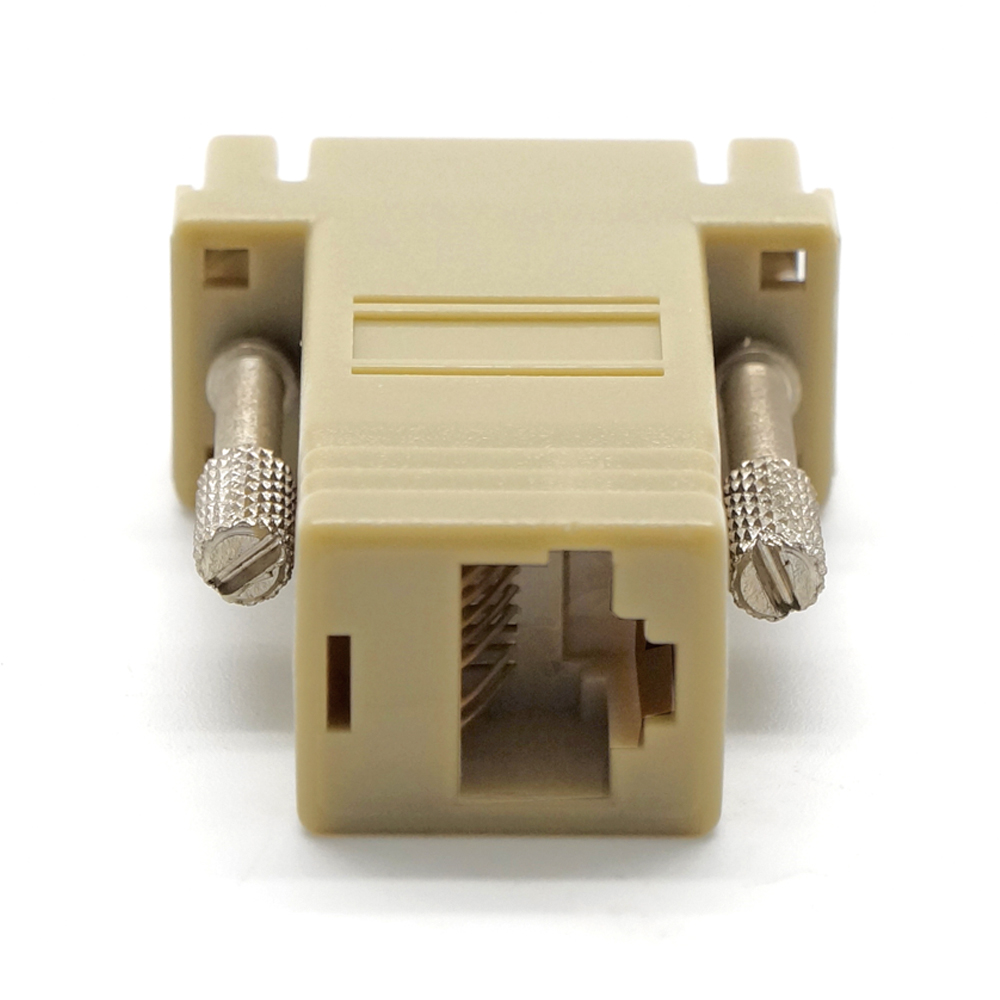

Thumb Screw + Hex Nut
