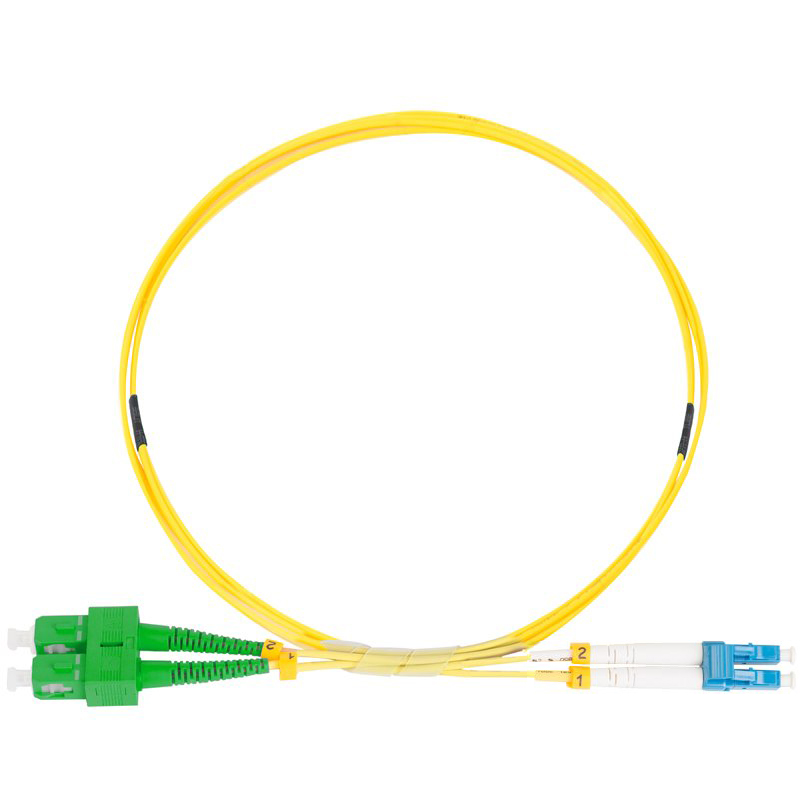

1m LC/UPC-SC/APC Singlemode Duplex OFNR 2.0mm Fiber Optic Patch Cable SKU: 105105
1+
$3.81
10+
$3.74
40+
$3.66
Business Member Pricing
Warranty:
- 30-day money back guarantee
- 15% restocking fee after 30days.
- Safe SSL encrypted shopping
Description
* Used to connect patch panels and/or network devices that utilize LC to SC style connectors and require 9/125 Single mode cabling
* 100% tested
* Test report included in each cable
* 1/2 Markers easily identify the TX and RX connector on each end of the assembly
| Connector Type | LC-SC Singlemode | ||
| Polishing | LC/UPC-SC/APC | ||
| Return Loss | A: 55dB - B:60dB |
||
| Insertion Loss | 0.30 dB | ||
| Ferrule Material | Ceramic (zirconia) | ||
| Ferrule Diameter | 1.25 mm / 2.5 mm | ||
| Body type | Duplex | ||
| Nominal Diameter Core | 9/125 µm | ||
| Jacket Material | OFNR | ||
| Operating Temperature Range | -20°C +70°C |
