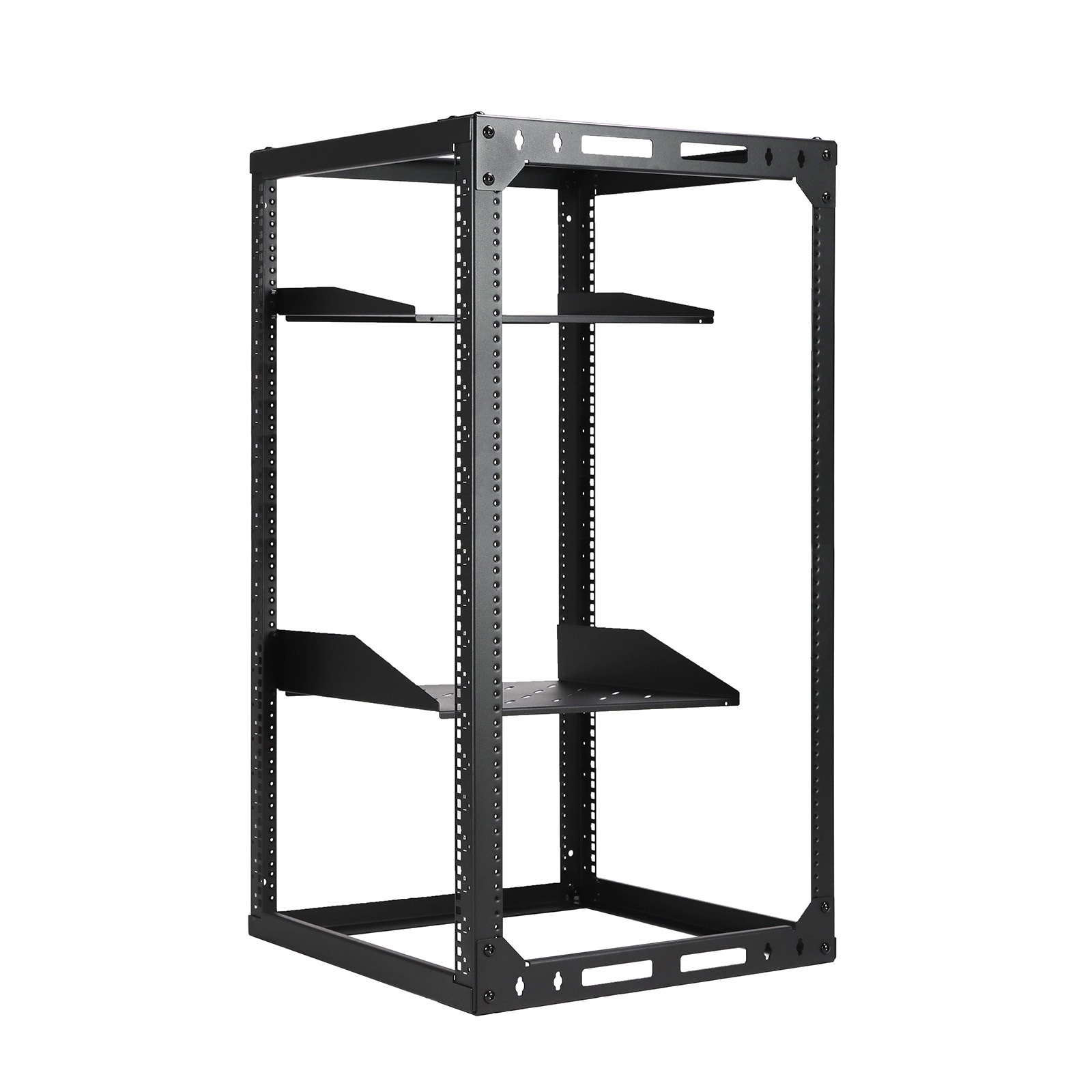

20U 4-Post Wall Mount Open Frame Rack, Side Mount, Floor-Standing w/ Casters Flat Box SKU: 104286

Data Sheet Assembly Guide

SRC Series Wall Mount Open Frame supports both front and side mount, enabling 19-inch servers, A/V or network equipment to be installed parallel or perpendicular to the wall, ideal for applications in closets, back offices, or anywhere where space is limited.
A side mount configuration allows for a greater mounting depth with the elimination of a wall barrier, also enables unobstructed maximum airflow from the front to the back-end of equipment that reduces hot spots, resulting in a more efficient operation and a longer lifespan. The open design also allows easy access to the front and rear of equipment, from any angle, for cable
management and servicing.

Universal and Optimal Design:

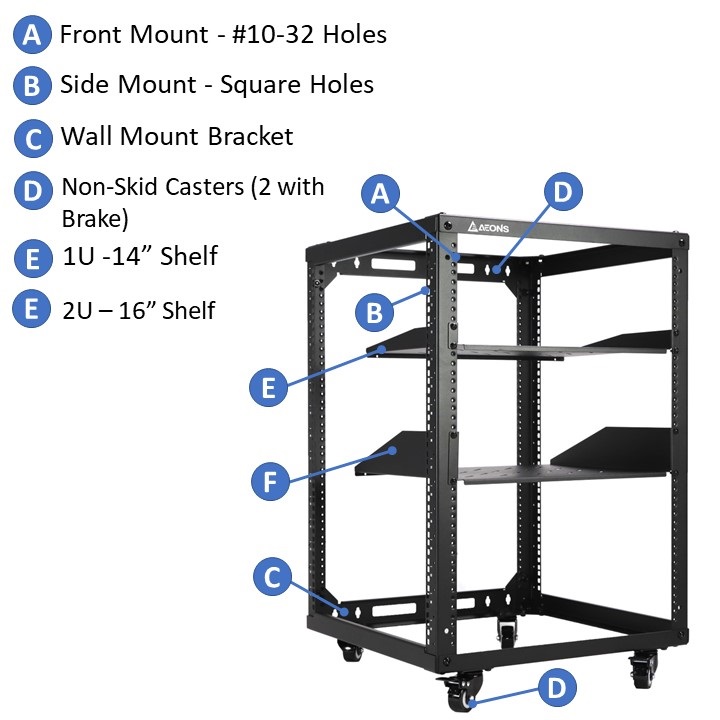

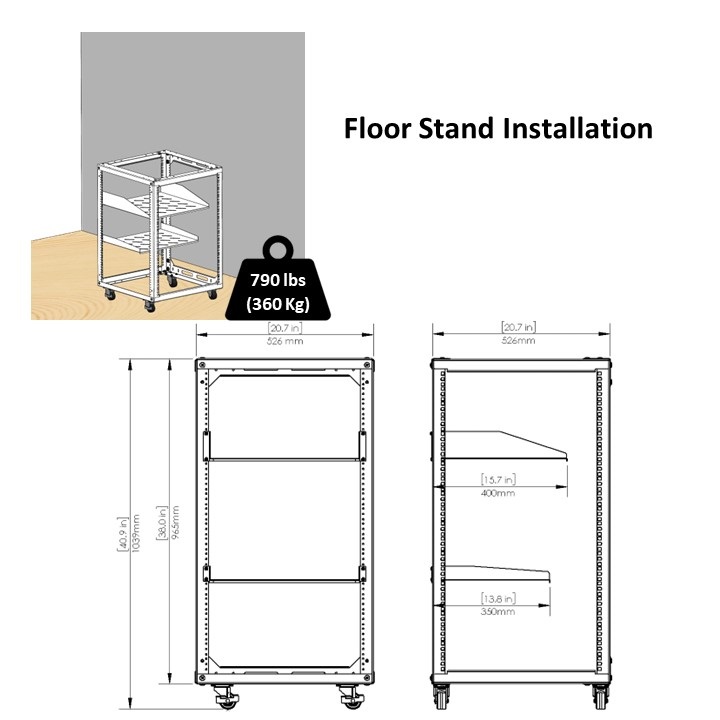

This unit supports both front and side mounting options, featuring #10-32 round mounting holes at the front and square mounting holes on the side. Wall-mounted or floor-standing with included casters. Pre-drilled Base frames support fastening to the ground and stacking.

Features:
