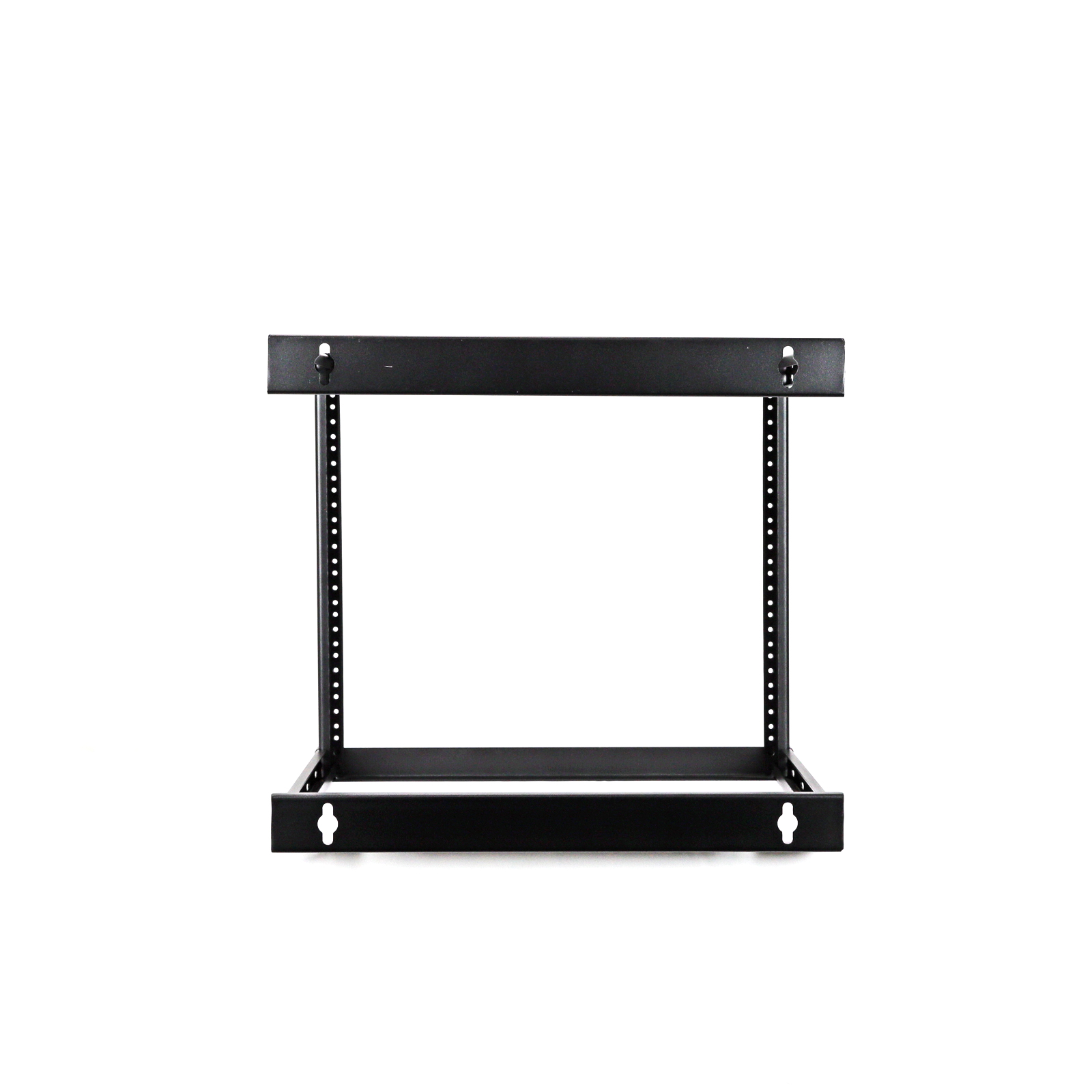

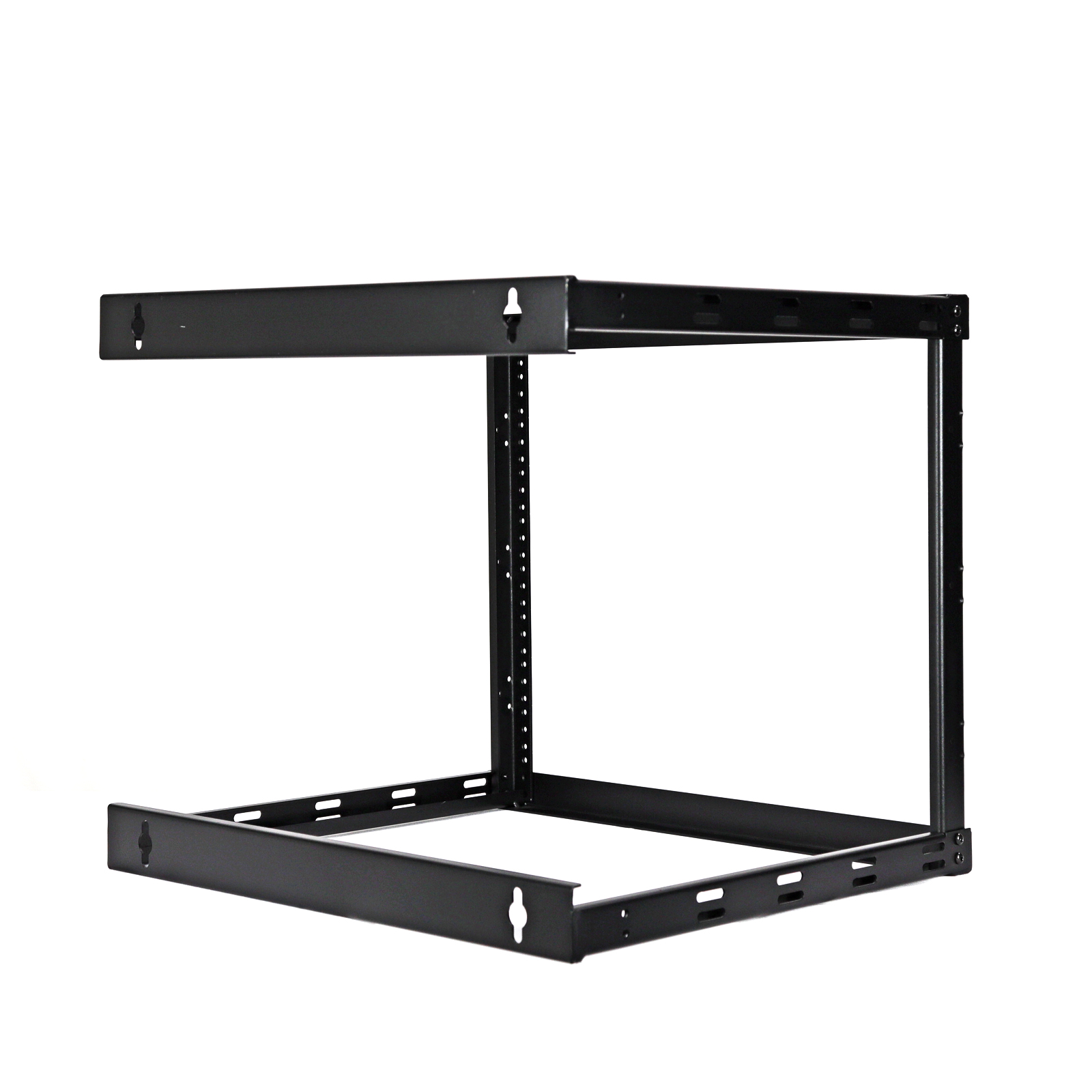

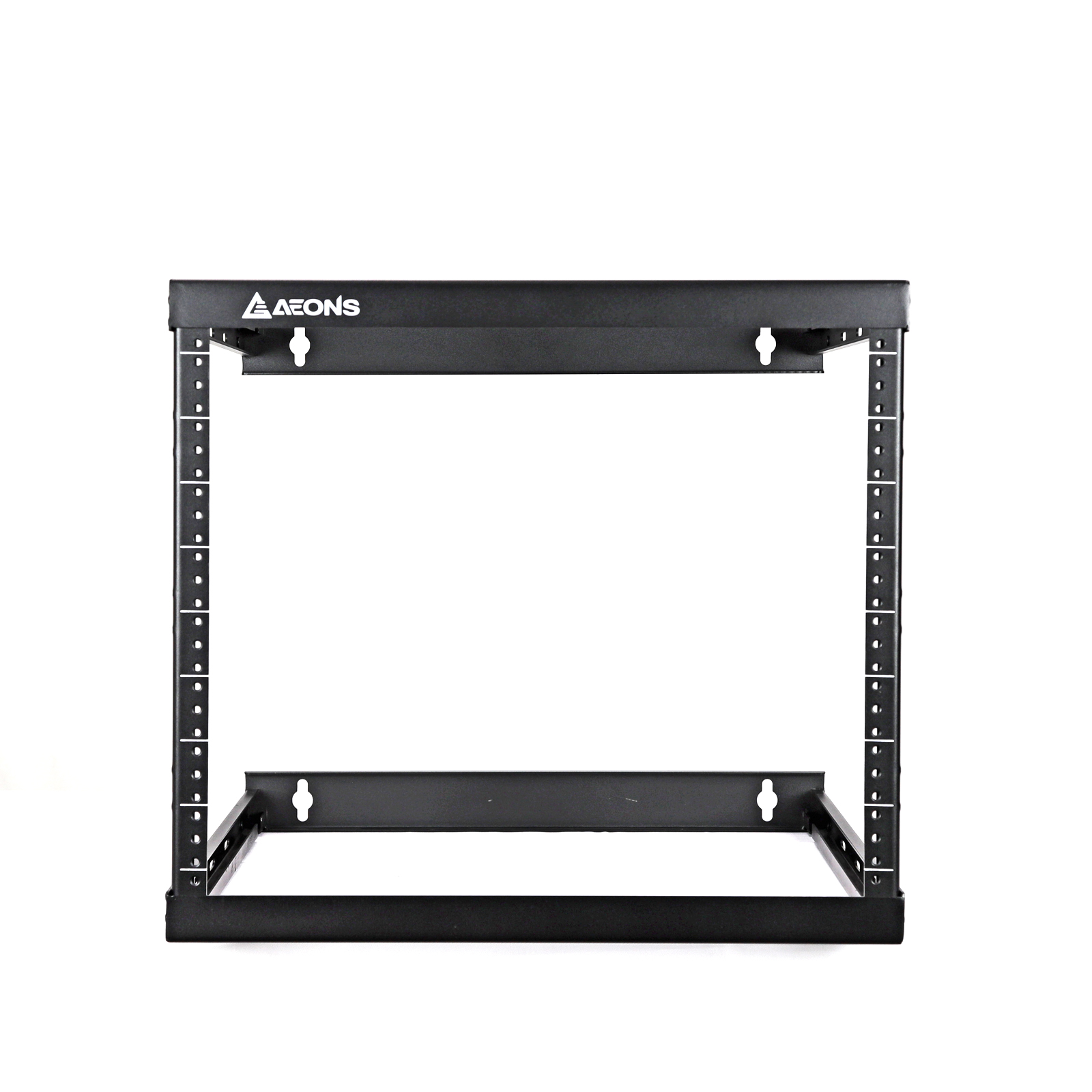

Networking Racks Open Frame Wall Racks 8U 2-Post Wall Mount Open Frame, 18'" Depth Flat Box

8U 2-Post Wall Mount Open Frame, 18'" Depth Flat Box SKU: 104283

1+
$84.90
2+
$83.20
4+
$81.54
Business Member Pricing

Warranty:

  • 30-day money back guarantee
  • 15% restocking fee after 30days.
  • Safe SSL encrypted shopping

Description

Data Sheet Assembly Guide


SRW Series Wall Mount Open Frame organizes EIA-standard 19-inch rack equipment in network room, offices, classrooms and other locations with limited floor space. The open solid frames with industry standards offer versatile solutions and enables unobstructed maximum airflow from the front to the back-end of equipment that reduces hot spots, resulting in a more efficient
operation and a longer lifespan. The open design also allows easy access to the front and rear of equipment, from any angle, for cable management and servicing.


Features:

  • Fits rack equipment up to 18 inch deep.
  • Maximum load capacity of 150 lbs.
  • Rugged high-quality 1.5mm cold rolled steel construction.
  • Pre-tapped 12-24 threaded holes for any network application
  • Fits all standard 19" rack mount IT or A/V gears in one rack
  • Ships flat-packed with hardware package. Easy assembly required.


    Specs:

    Type:Open-Frames
    Style:Wall-Mount
    Rack Height:8U
    Rack Depth (in. / mm): 18 / 457
    Maximum Device Depth (in. / mm):18 / 457
    Number of vertical mounting rails:2
    Number of L brackets:N/A
    Unit Dimensions (H x W x D / in.):18 x 20x 18


    Due to the dimensions of the box, Dimensional Weight Rates will apply for this item. What is Dimensional Weight?

    ** Free freight does NOT apply to this item. **
