Networking Racks Wall-Mount Cabinets 9U 19" Wall-Mount Cabinet Glass Door 15.5" Depth Flat Box

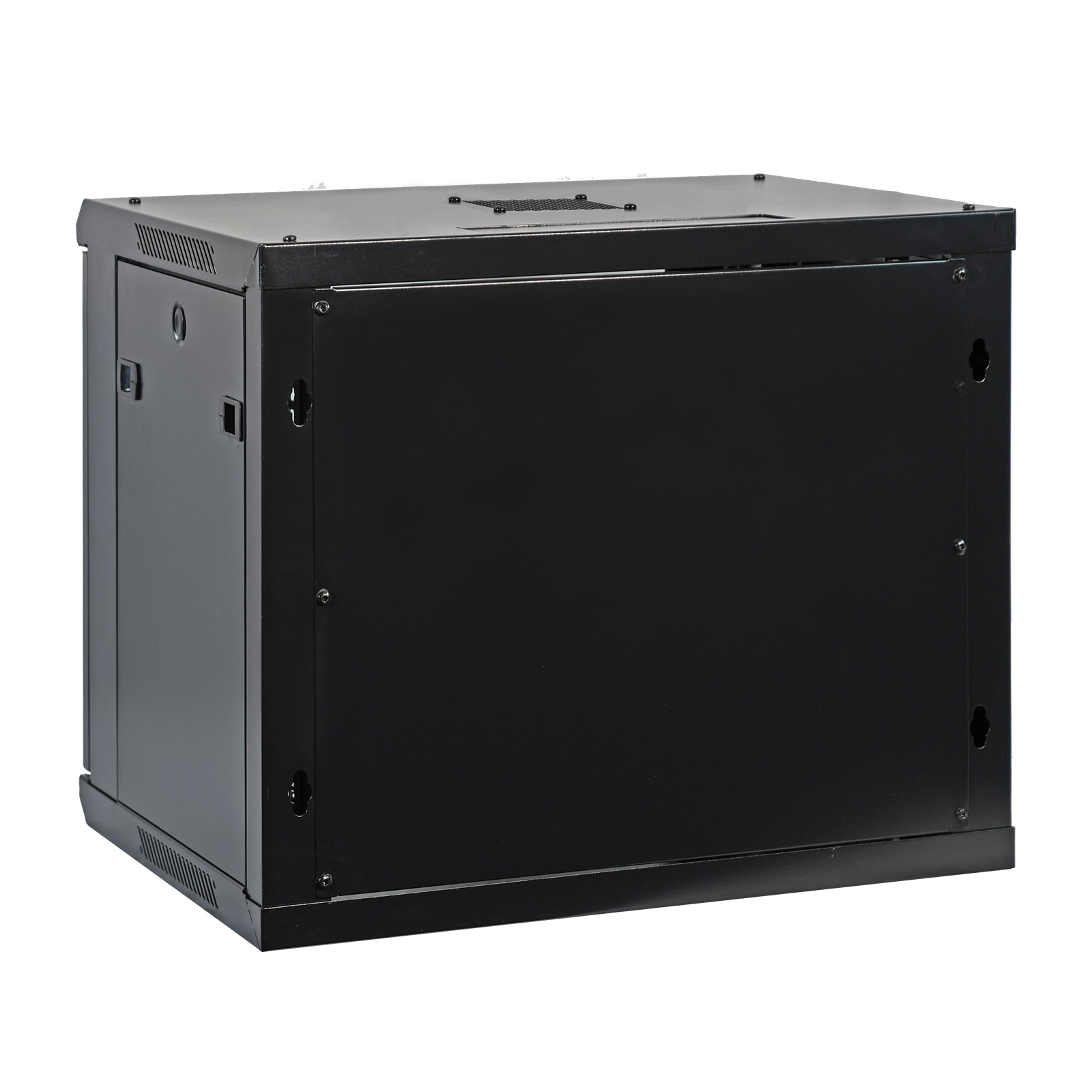

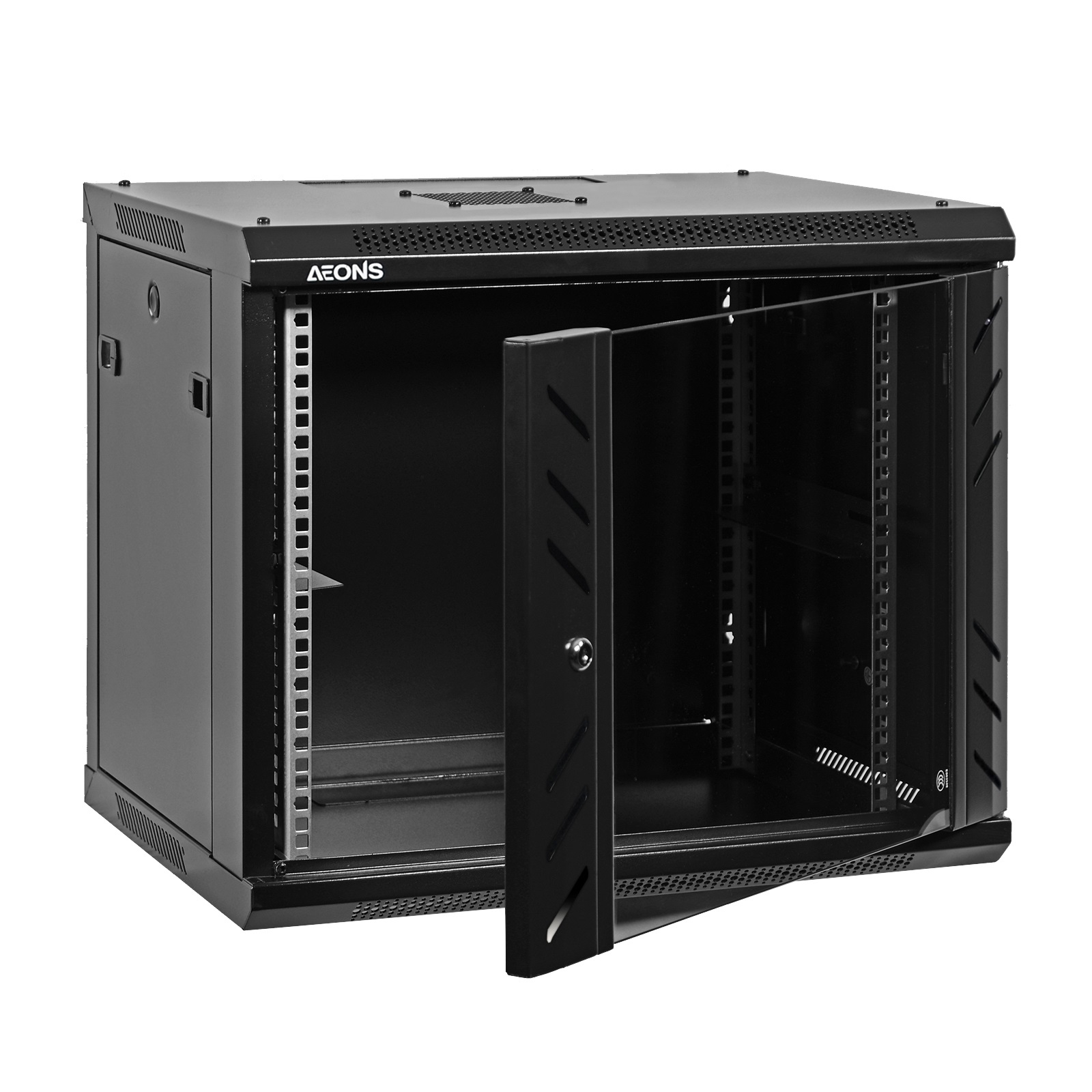

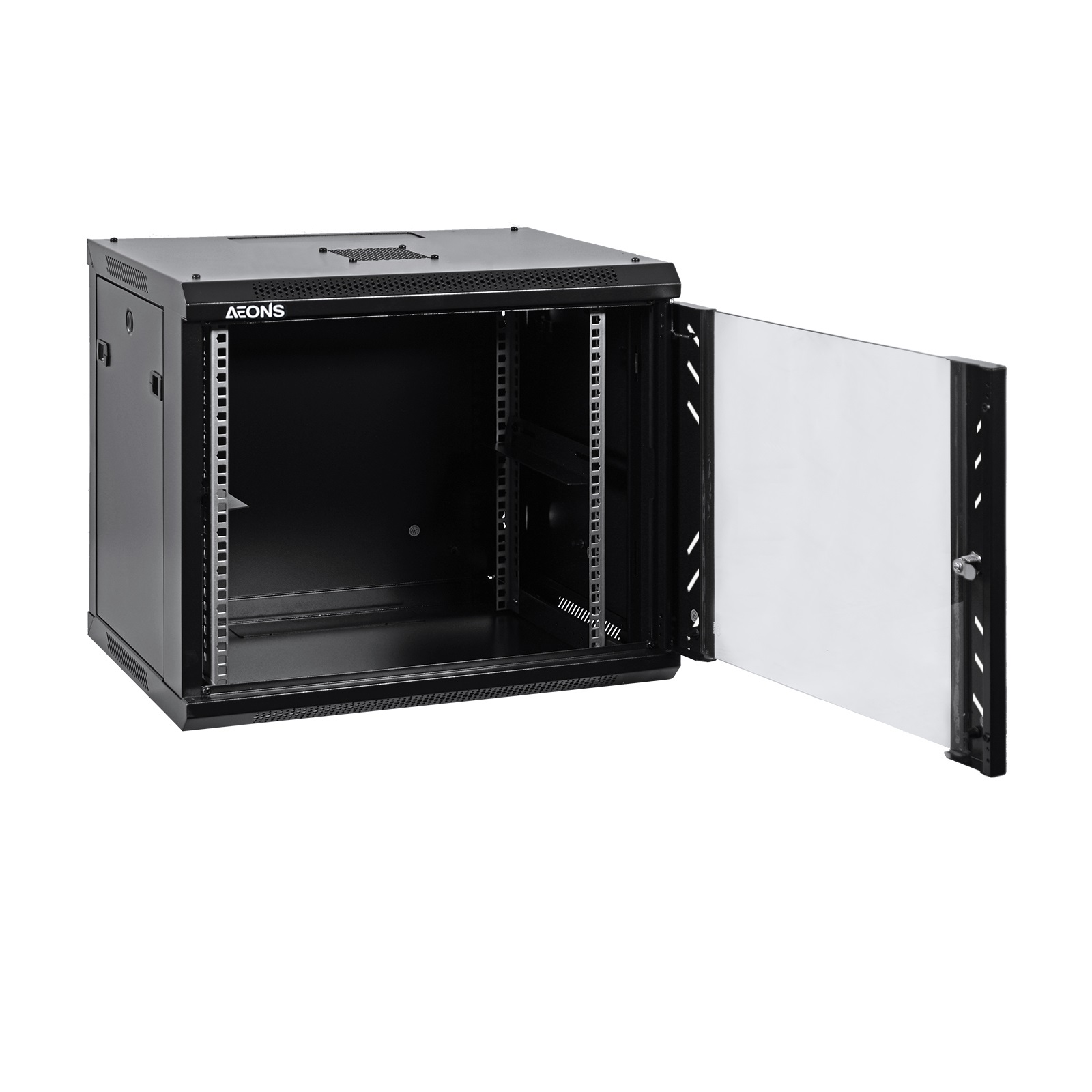

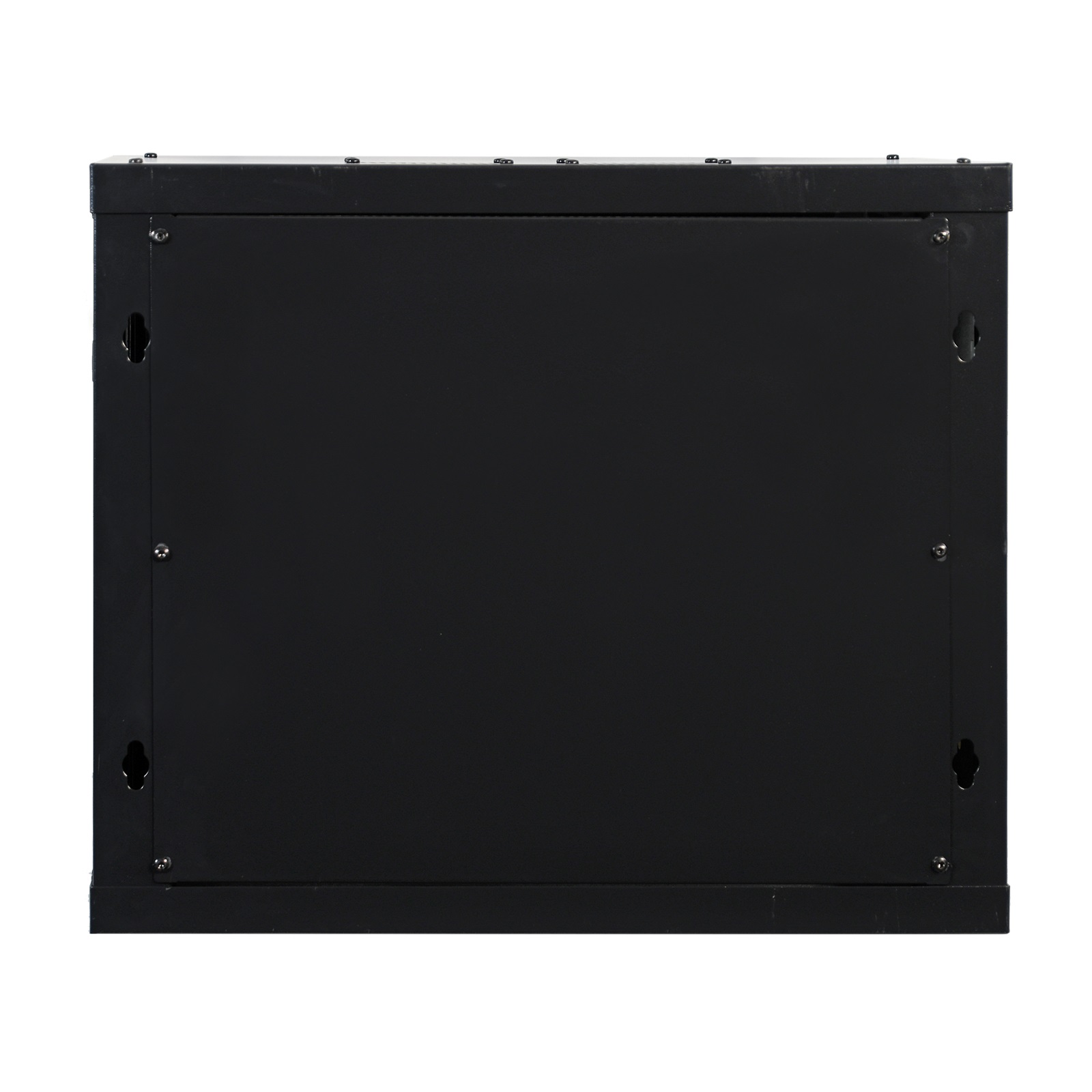

9U 19" Wall-Mount Cabinet Glass Door 15.5" Depth Flat Box SKU: 104258

1+
$160.00
2+
$156.80
4+
$153.66
Business Member Pricing

Warranty:

  • 30-day money back guarantee
  • 15% restocking fee after 30days.
  • Safe SSL encrypted shopping

Description

Data Sheet Assembly Guide



Pro-Series Wall Mount Cabinets organize and secure EIA-standard 19-inch rackmount equipment in network closets, offices,
classrooms, and other locaons with limited floor space. Flat-packed for easy installaon and quick deployment. Removable and
reversible front door and removable side panel design, each with quick-release mechanism, allow easy access to equipment during
installaon and maintenance. The vented frames and oponal cooling fans provide excellent air venlaon.


Features:

  • Fits rack equipment up to 15.5 inch deep.
  • Maximum load capacity of 132 lbs.
  • Reinforced lockable door.
  • Removable door and side panel.
  • Cable pass-through on top and bottom.
  • Rugged welding frame structure with ventilation at front, sides, top and bottom
  • Ships flat-packed with hardware package. Easy assembly required.


    Specs:

    Type:Enclosure
    Style:Wall-Mount
    Rack Height:9U
    Rack Depth (in. / mm): 17.3 / 440
    Maximum Device Depth (in. / mm):15.5 / 393
    Front Door Type:Tempered Glass
    Load capacity (lbs / kg):132 / 60
    Number of vertical mounting rails:4
    Number of L brackets:2
    Shelves:No
    Cable access:Top, Bottom, Rear
    Unit Dimensions (H x W x D / in.):20 x 23.5 x 17.5


    Due to the dimensions of the box, Dimensional Weight Rates will apply for this item. What is Dimensional Weight?

    ** Free freight does NOT apply to this item. **
