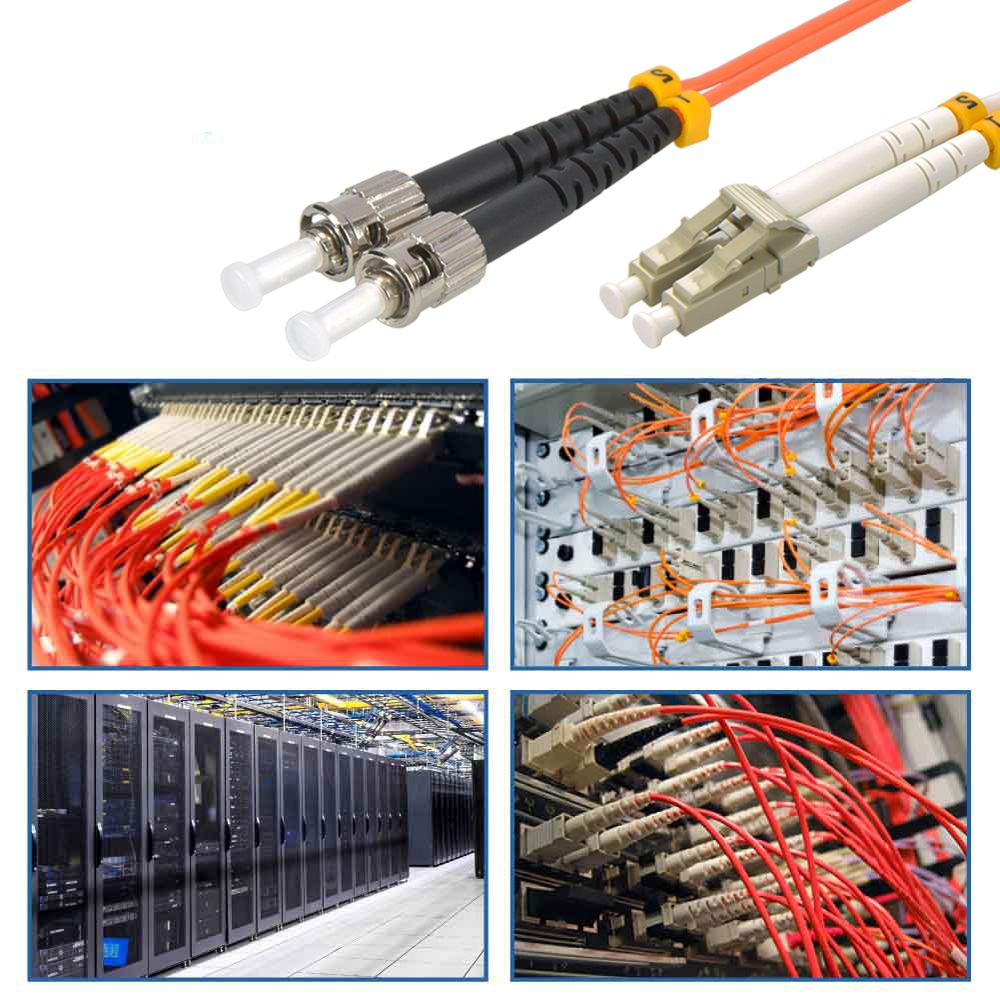

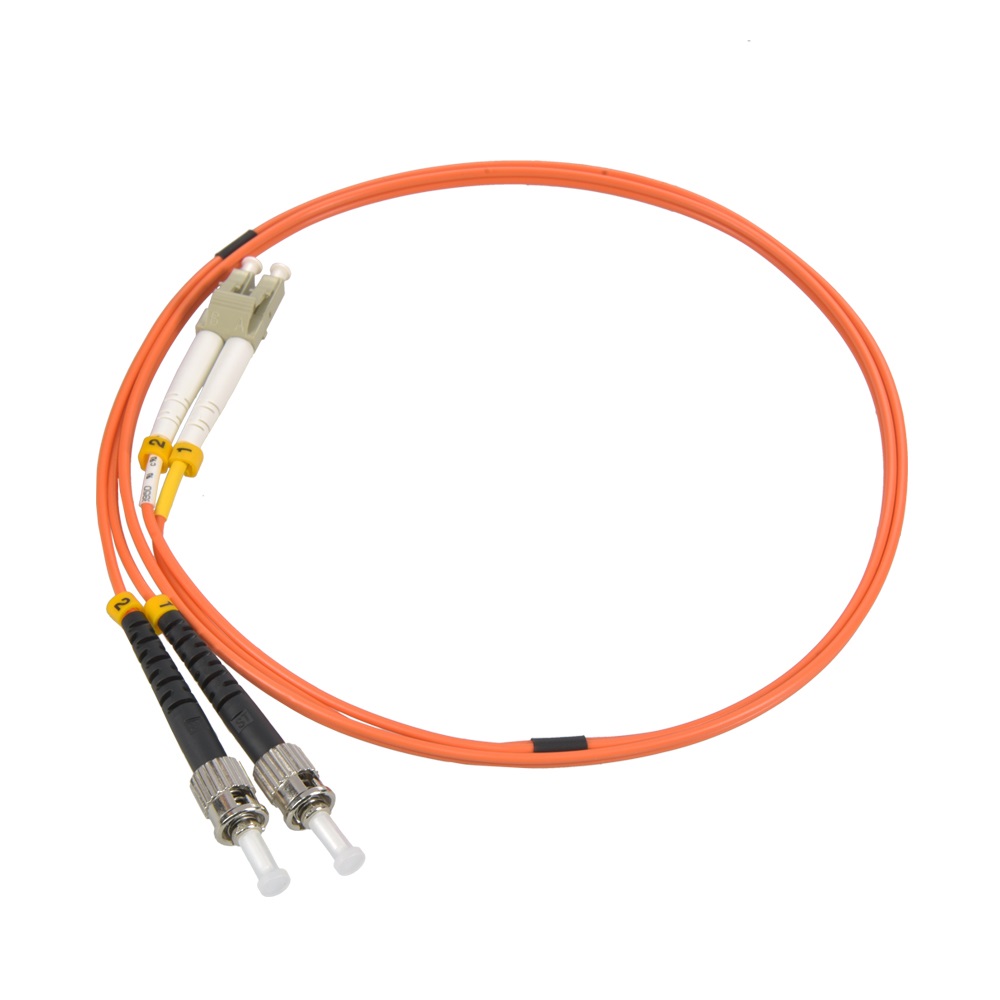

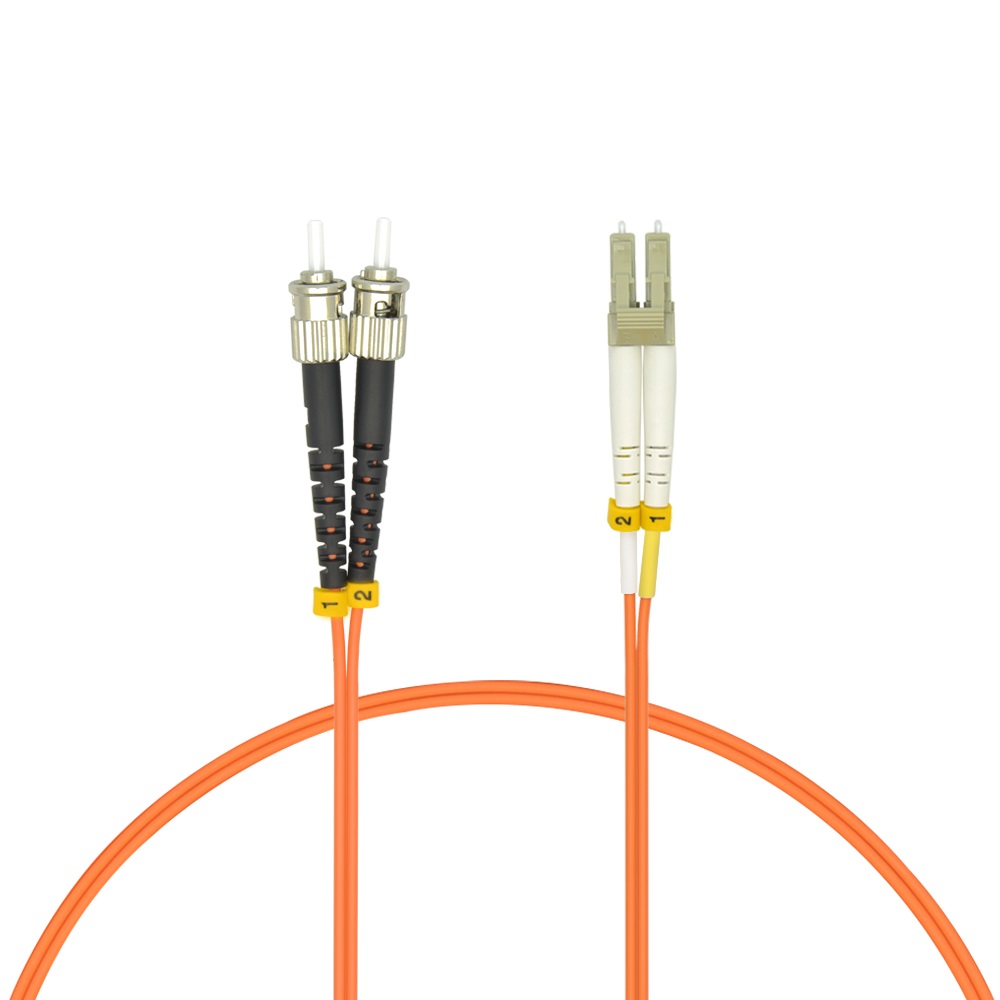

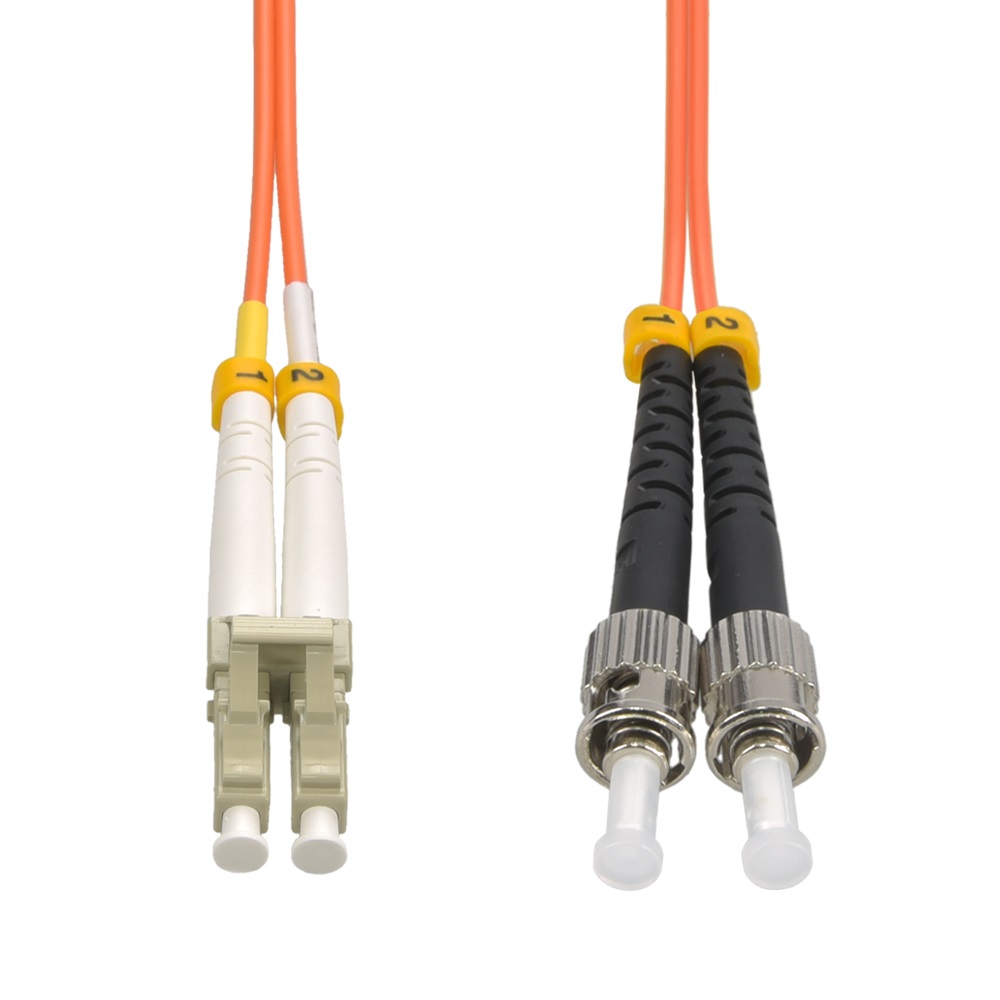

15m LC/UPC ST/UPC OM2 Multimode Duplex LSZH Fiber Optic Patch Cable SKU: 102948-L2
1+
$9.89
5+
$9.69
20+
$9.50
Business Member Pricing
Warranty:
- 30-day money back guarantee
- 15% restocking fee after 30days.
- Safe SSL encrypted shopping
Description
* Used to connect patch panels and/or network devices that utilize duplex LC-ST style connectors and require OM2 50/125 multimode cabling
* Ceramic ferrules provide precise alignment
* Integrated clip ensures correct A/B orientation
* Connectors utilize a UPC polish
| Connector Type | LC-ST Multimode | ||
| Polishing | UPC | ||
| Return Loss | 35 dB | ||
| Insertion Loss | 0.2 dB (typical) | ||
| Ferrule Material | Ceramic (zirconia) | ||
| Ferrule Diameter | 1.25 mm / 2.5 mm | ||
| Cabled Optical Fiber | OM2 | ||
| Nominal Diameter Core | 50/125 µm | ||
| Jacket Material | LSZH | ||
| Temperature Range | -20°C +70°C |
