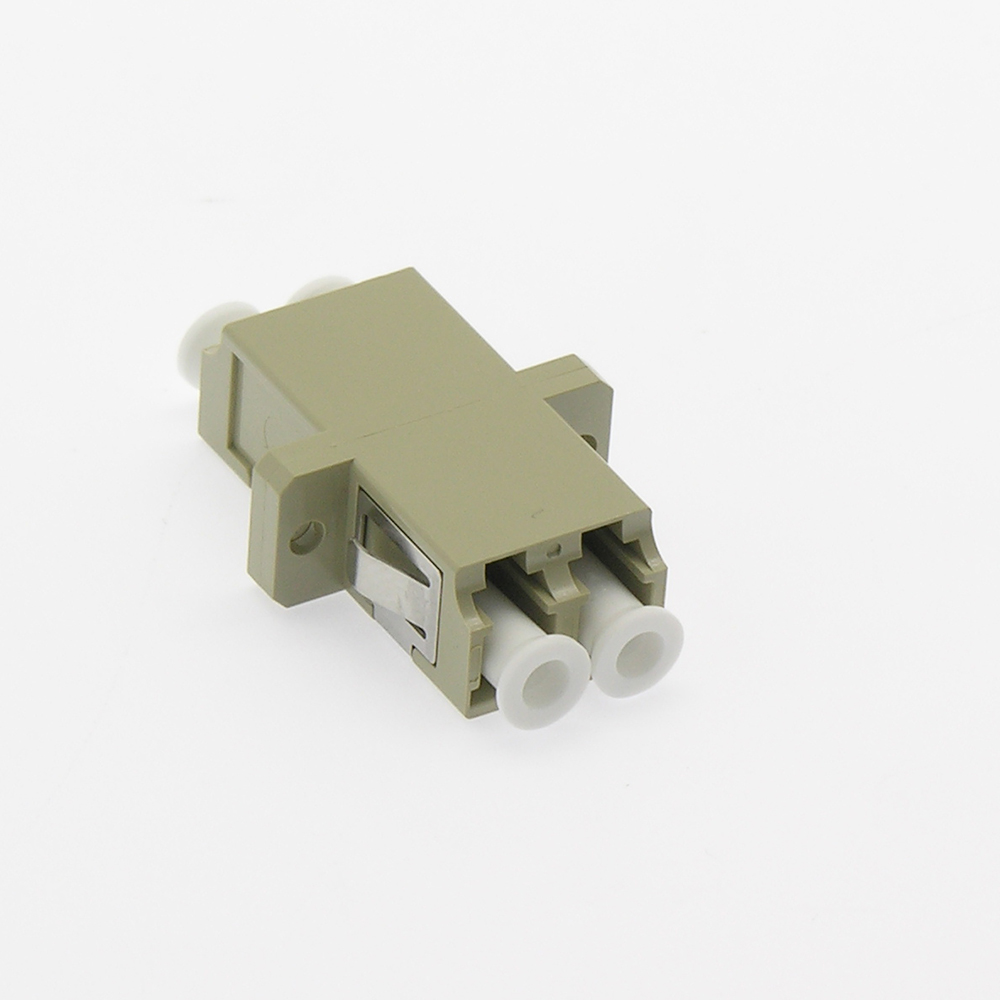

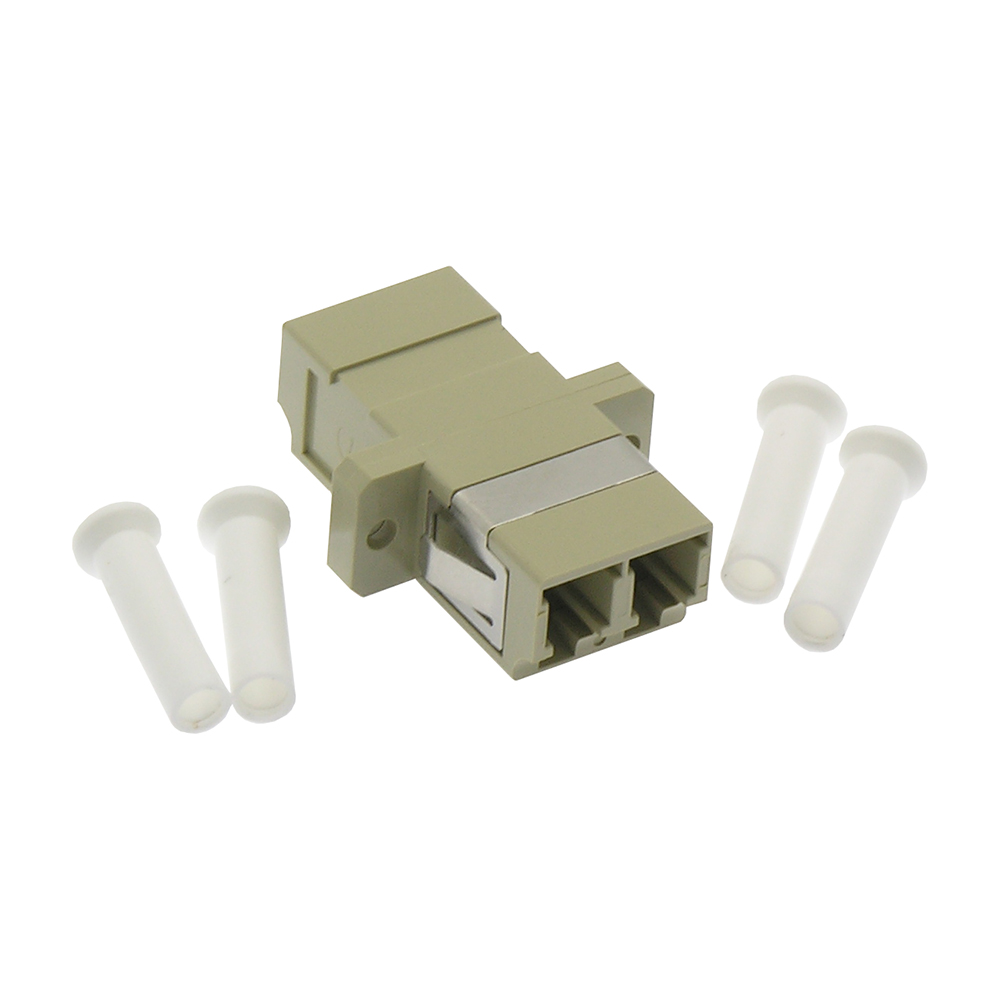

LC/UPC Multimode Duplex Fiber Optic Coupler with Flange, Beig SKU: 102885
1+
$0.64
10+
$0.63
40+
$0.62
Business Member Pricing
Warranty: Life Time
- 30-day money back guarantee
- 15% restocking fee after 30days.
- Safe SSL encrypted shopping
Description
* Used to connect patch panels and/or network devices that utilize LC to LC style connectors and require 9/125 Single mode cabling
* 1/2 Markers easily identify the TX and RX connector on each end of the assembly
| Connector Type | LC-LC | ||
| Polishing | UPC | ||
| Return Loss | 55 dB | ||
| Insertion Loss | 0.30 dB | ||
| Ferrule Material | Ceramic (zirconia) | ||
| Ferrule Diameter | 1.25 mm / 2.5 mm | ||
| Body type | Duplex | ||
| Nominal Diameter Core | 9/125 µm | ||
| Jacket Material | OFNR/LSZH | ||
| Operation Temperature Range | -20°C +70°C |
