Spec Drawing

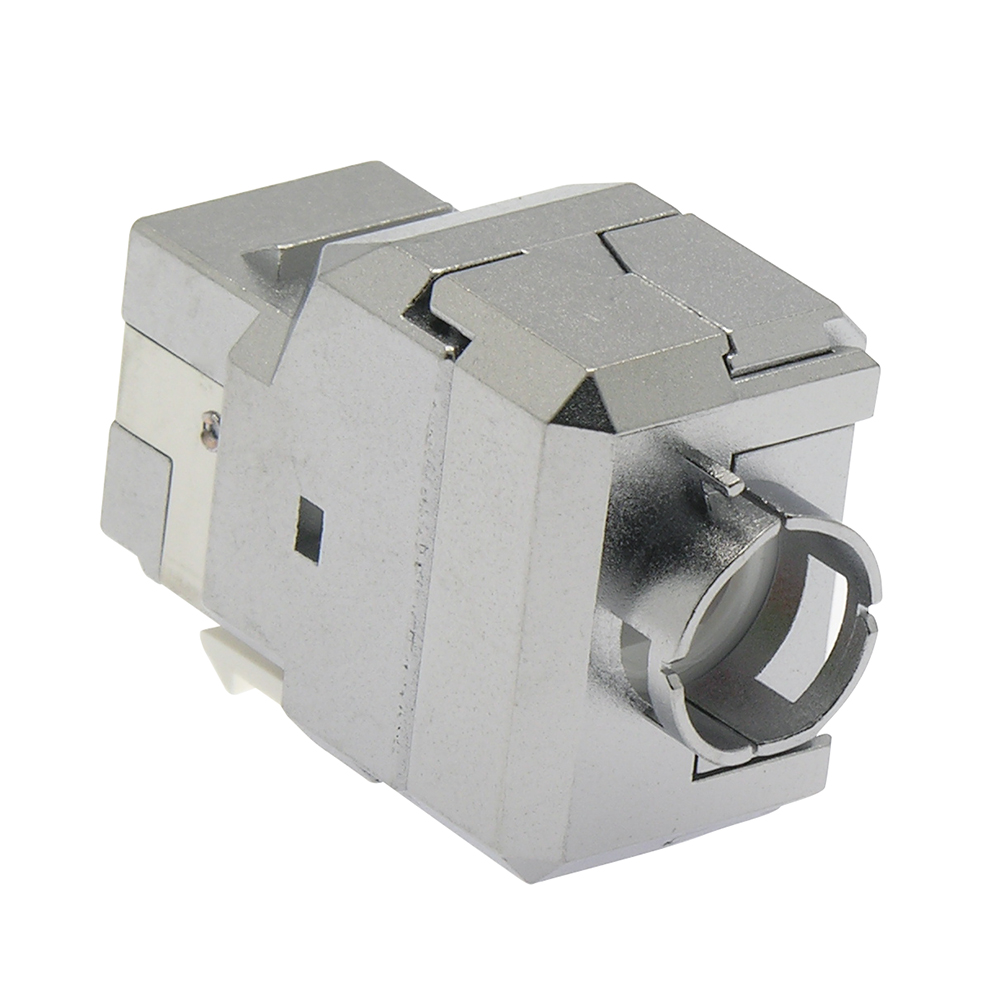

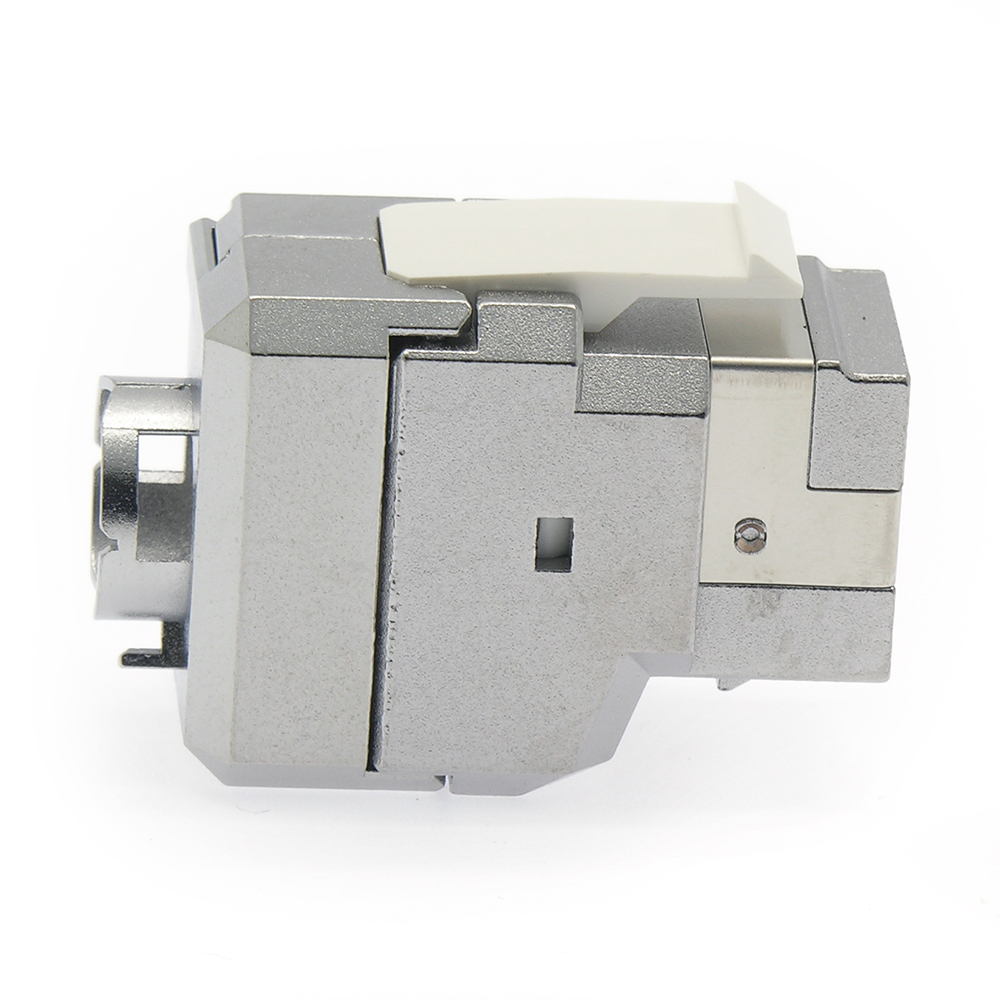

This slim type Cat.6A Shielded Keystone Jack has zinc die-cast housing for maximum shield protection and is designed for our Cat.6A blank patch panel. It is also compatible with all our wall plate and patch cables.
BestLink Netware RJ45 keystone jack uses 50 micron gold plated contact pin. Why 50 micron?
* CAT 6A rated connectors provide excellent performance for data networks requiring maximum speed and bandwidth
* 180 degree puch down type
* 4 x 4 termination layout

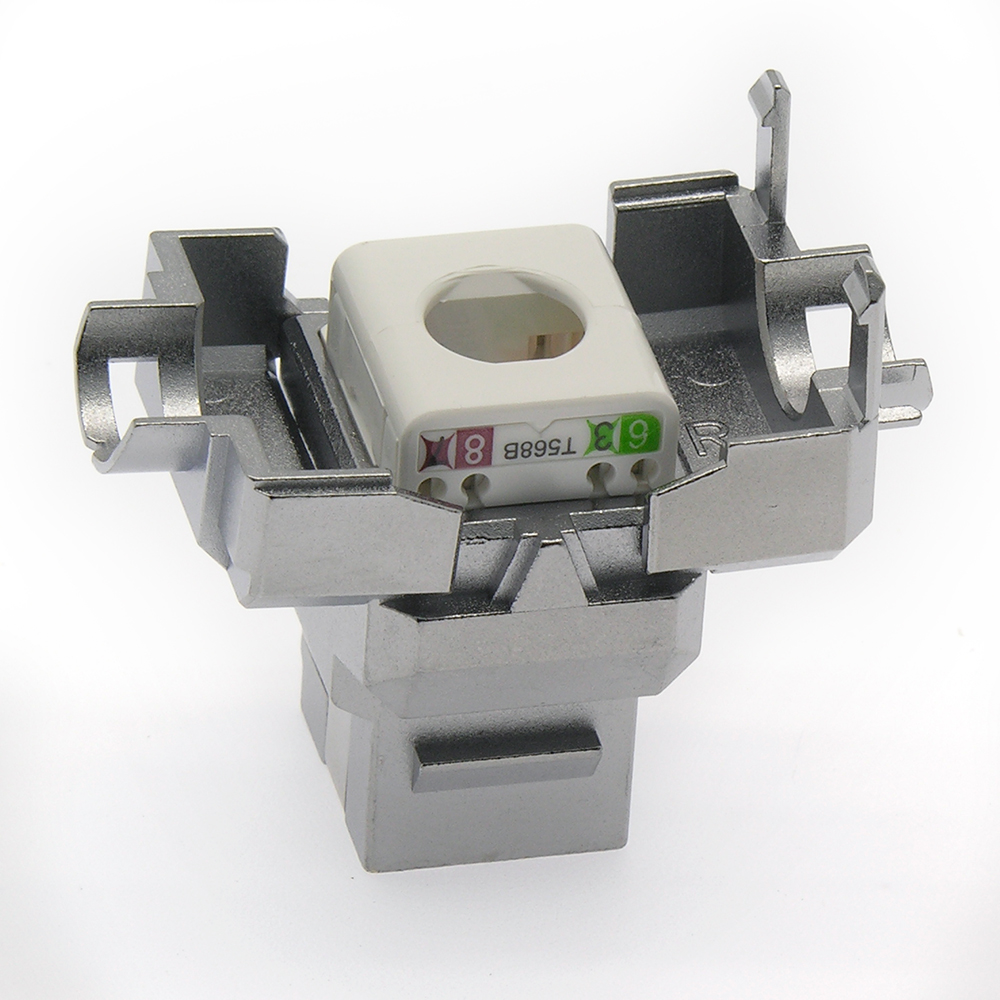

* Includes an integrated TIA-568A/B color wiring diagram
* Compatible with all BestLink Netware wallplates, surface mount boxes, and blank patch panels
* Works with all Bestlink Netware Ethernet patch cables

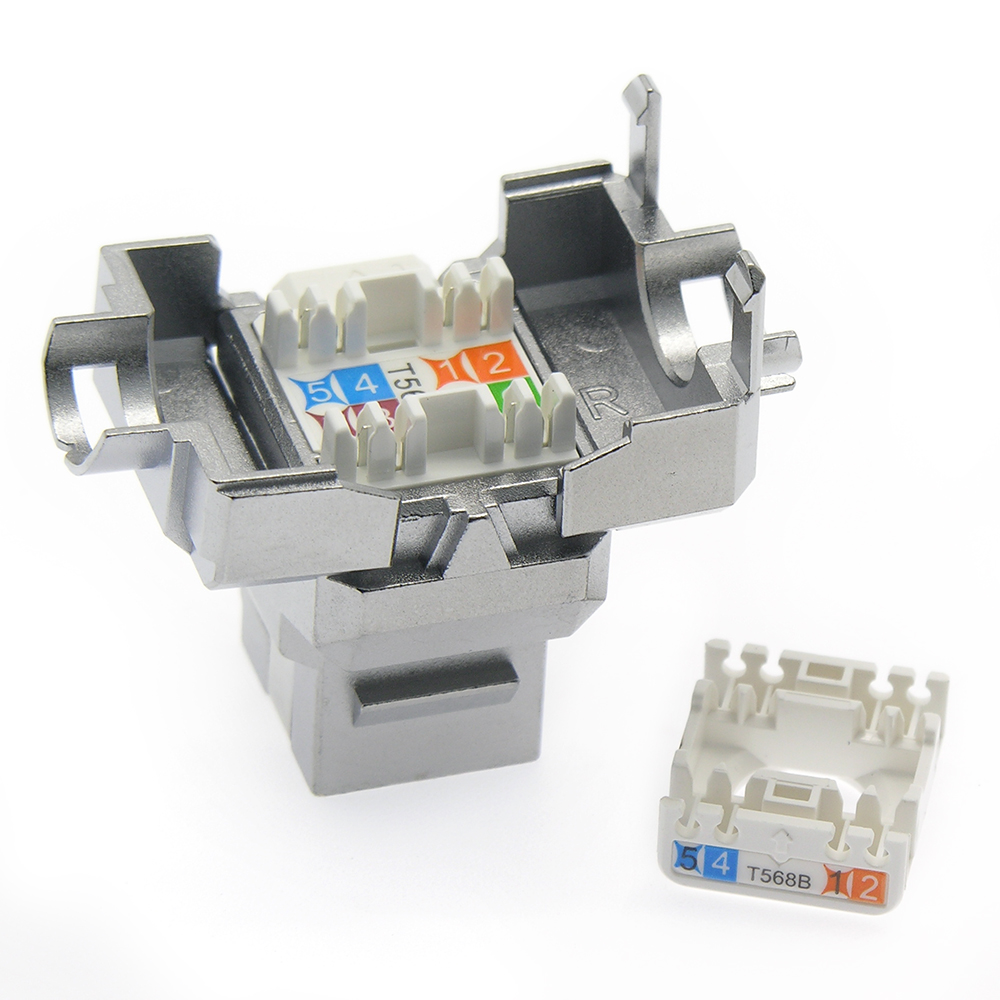

* Termination cap included
* Individually packaged
* UL listed
Buy your Cat.6A Patch Panel for STP Keystone Jack Here
|
|
|
| 23AWG ~ 26AWG Solid and Stranded Wire |
|
|
| 50 Micron Gold Plating, Operating Life: 750 Insertions |
|
|
| 100 Micron Nickel Plating, Operating Life: 250 Reterminations |
|
|
|
|
|
|
|
| Shield Cover (Shield Type) |
|
| 50~60Micron Nickel Plating over Die-Cast Zinc |
|
|
| 10Base-T/100Base-TX Fast Ethernet/1000Base-T |
|
