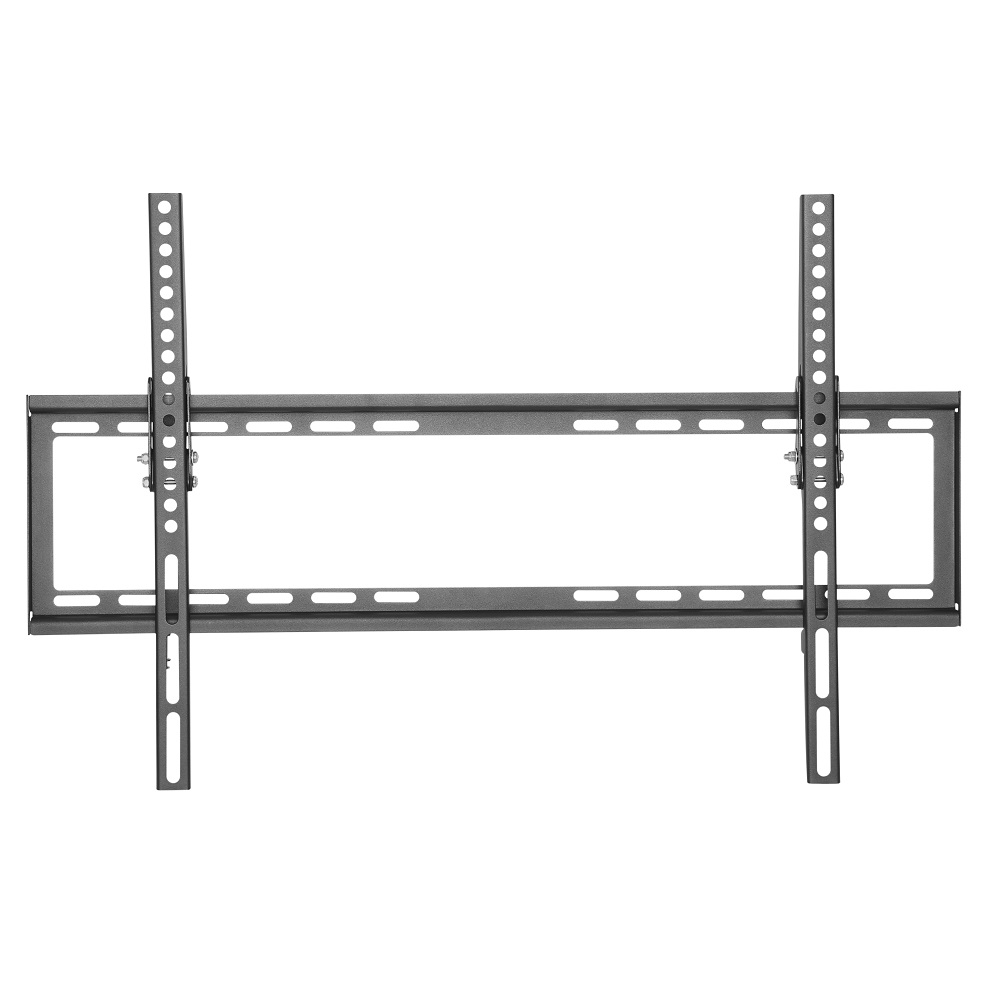

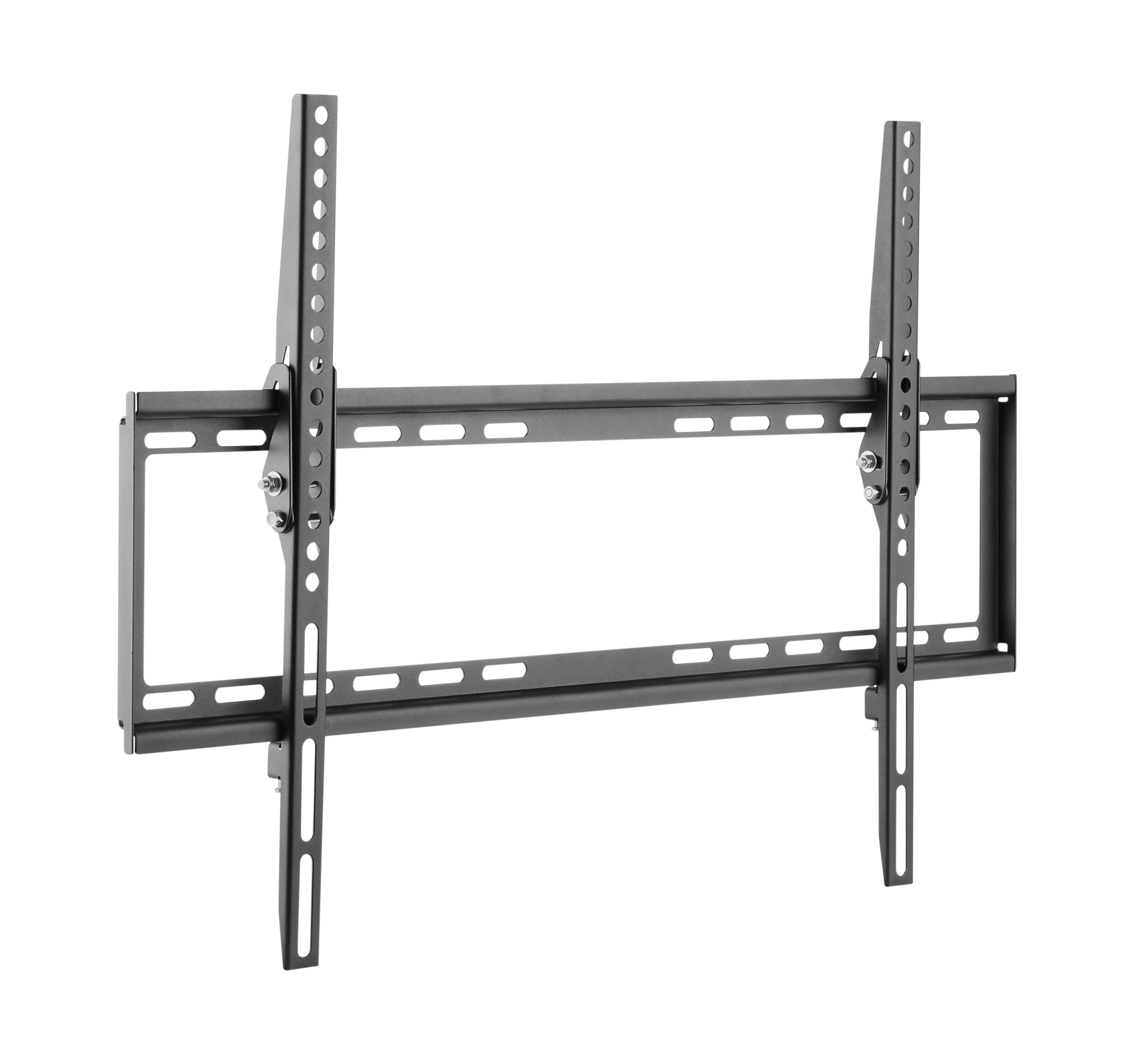

TV Mount for 37~70" Tilt, Max 600x400 VESA, KL22G-64T SKU: 502688BK
1+
$9.05
14+
$8.78
42+
$8.52
Business Member Pricing
Warranty:
- 30-day money back guarantee
- 15% restocking fee after 30days.
- Safe SSL encrypted shopping
Description
Spec Drawing Assembly Guide Large Image Packaging
Features:
Sturdy steel construction provides solid and long-lasting performance.
High quality power-coated finish provides a stylish anti-scratch surface.
Open architecture allows for increased ventilation and easier access to wires.

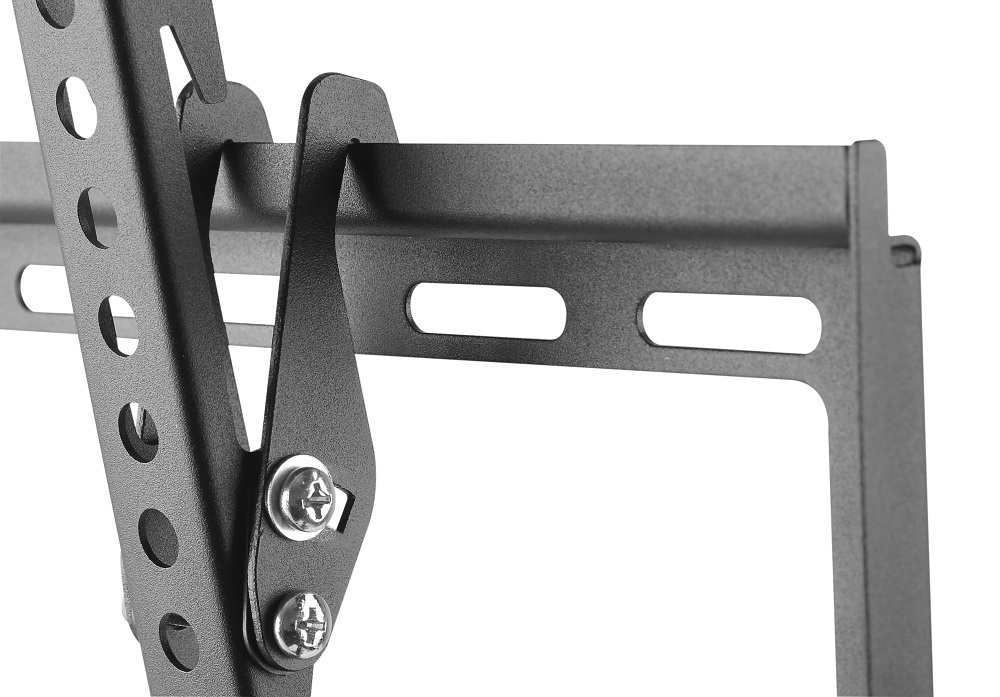

Security screws provide added safety for TV.
| Material | Steel | ||
| Color | Fine Texture Black | ||
| Surface Finish | Powder Coating | ||
| Metal Sheet Thickness | Wall Plate THK: 0.047" (1.2mm) Cold-Rolled Sheet Bracket Arm THK: 0.047" (1.2mm) Cold-Rolled Sheet |
||

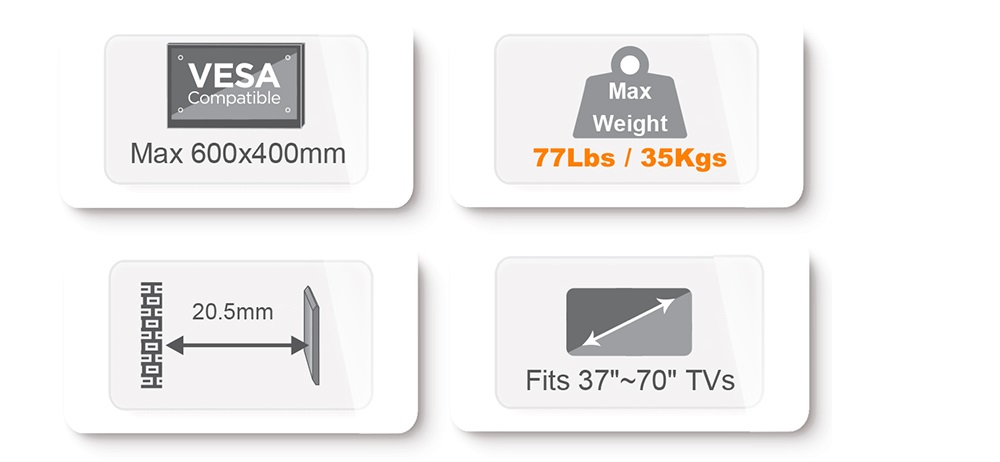

| Compatible Screen Size * | 37"~70" | ||

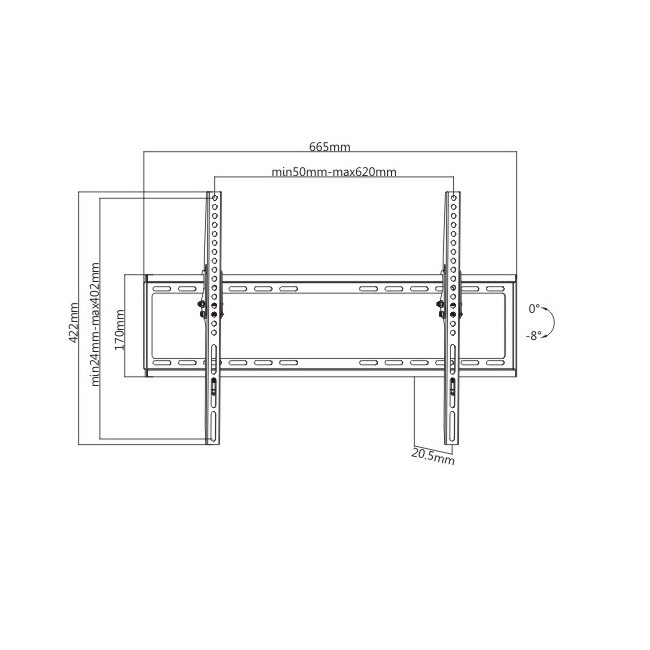

| Dimensions | 0.81"x26.2"x16.6" (20.5x465x422mm) | ||
| Max VESA | 600x400mm | ||
| Weight Capacity | 77Lbs (35kg) | ||
| Profile | 0.81" (20.5mm) | ||

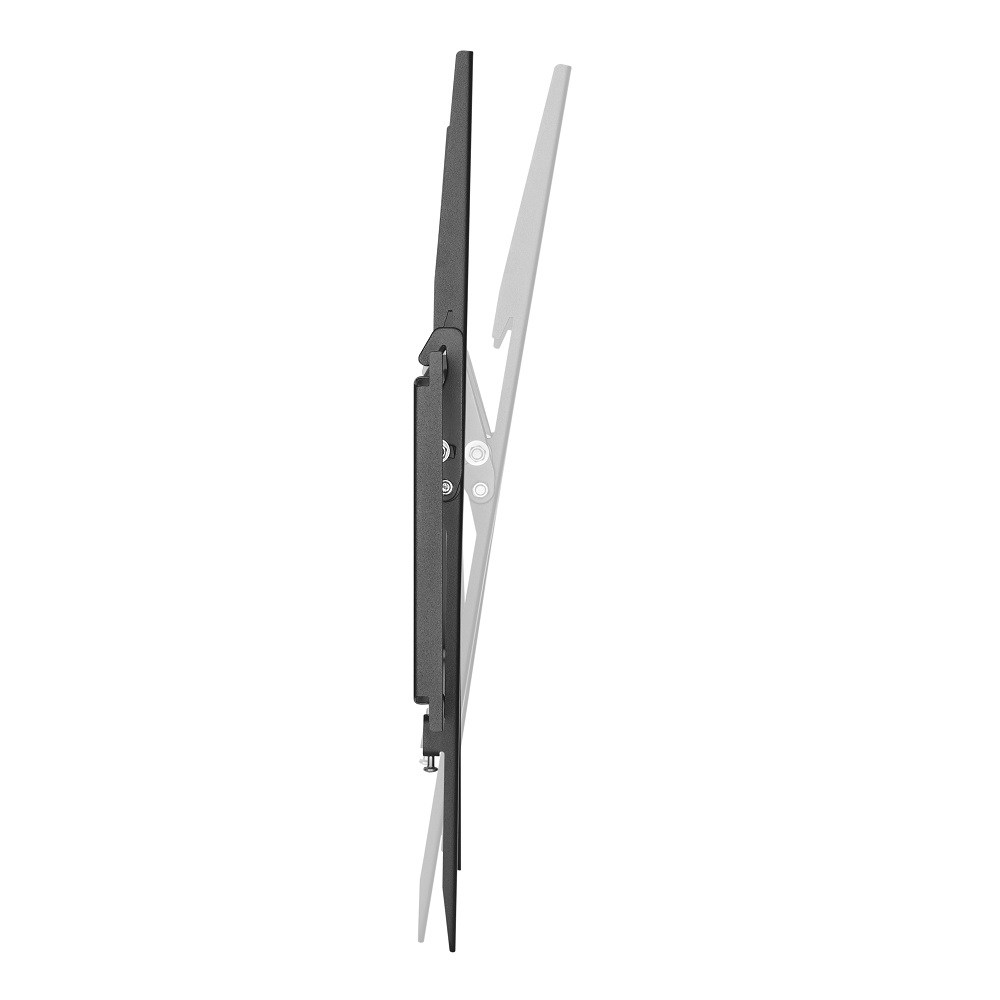

| Tilt Range | -8°~0° | ||
| Fits Curved TV | No | ||
| Installation | Solid Wall, Double Stud (406 / 450 / 600mm) | ||
| Panel Type | Detachable Panel | ||
| Wall Plate Type | Fixed Wall Plate | ||
| Cable Management | No | ||
| Anti-Theft | No |
* Note: Supported screen size is provided as a reference only. Please check the bracket dimensions above and make sure the overall bracket size does not exceed your TV.
