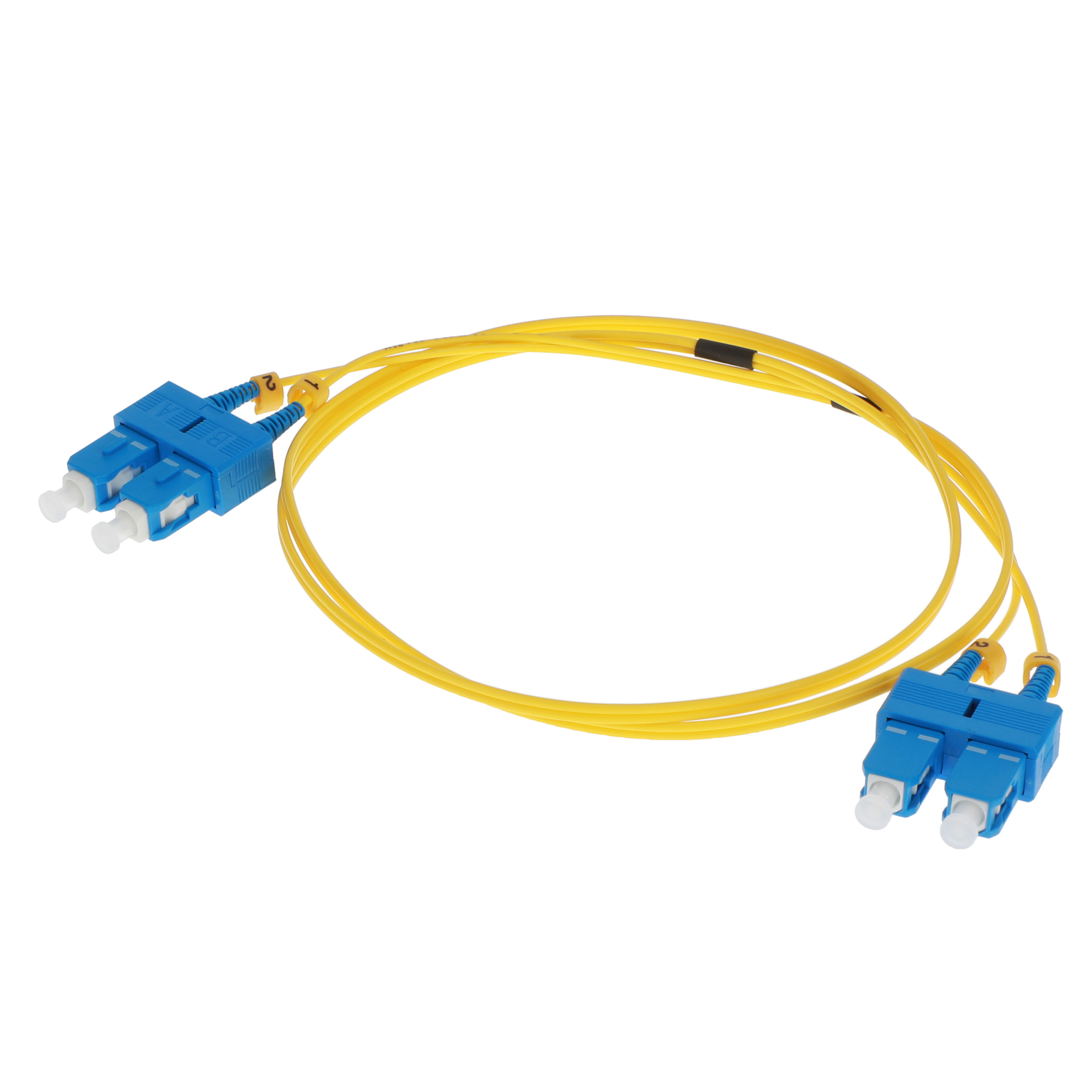

1m SC/UPC-SC/UPC Singlemode Duplex 1.6mm Slim Fiber Optic Patch Cable with Short Boot SKU: 105303
1+
$3.69
10+
$3.62
40+
$3.55
Business Member Pricing
Warranty:
- 30-day money back guarantee
- 15% restocking fee after 30days.
- Safe SSL encrypted shopping
Description
Used to connect patch panels and/or network devices that utilize SC to SC style connectors and require 9/125 Single mode cabling BIF in the FTTH networks run by Telecom operators.
* Short boots and slim cable diameter for tight space installation.
* Bend-insentive fiber (G657A1)
* Connectors utilize UPC polish
* Short boots and slim cable diameter for tight space installation.
* Bend-insentive fiber (G657A1)
* Connectors utilize UPC polish
| Connector Type | SC-SC Simplex | ||
| Polishing | UPC |
||
| Return Loss | 55dB | ||
| Insertion Loss | 0.30 dB | ||
| Ferrule Material | Ceramic (zirconia) | ||
| Ferrule Diameter | 1.25 mm / 2.5 mm | ||
| Body type | Duplex | ||
| Nominal Diameter Core | 9/125 µm | ||
| OD | 1.6mm | ||
| Jacket Material |
OFNR/LSZH |
||
| Operation Temperature Range |
-20°C +70°C |
