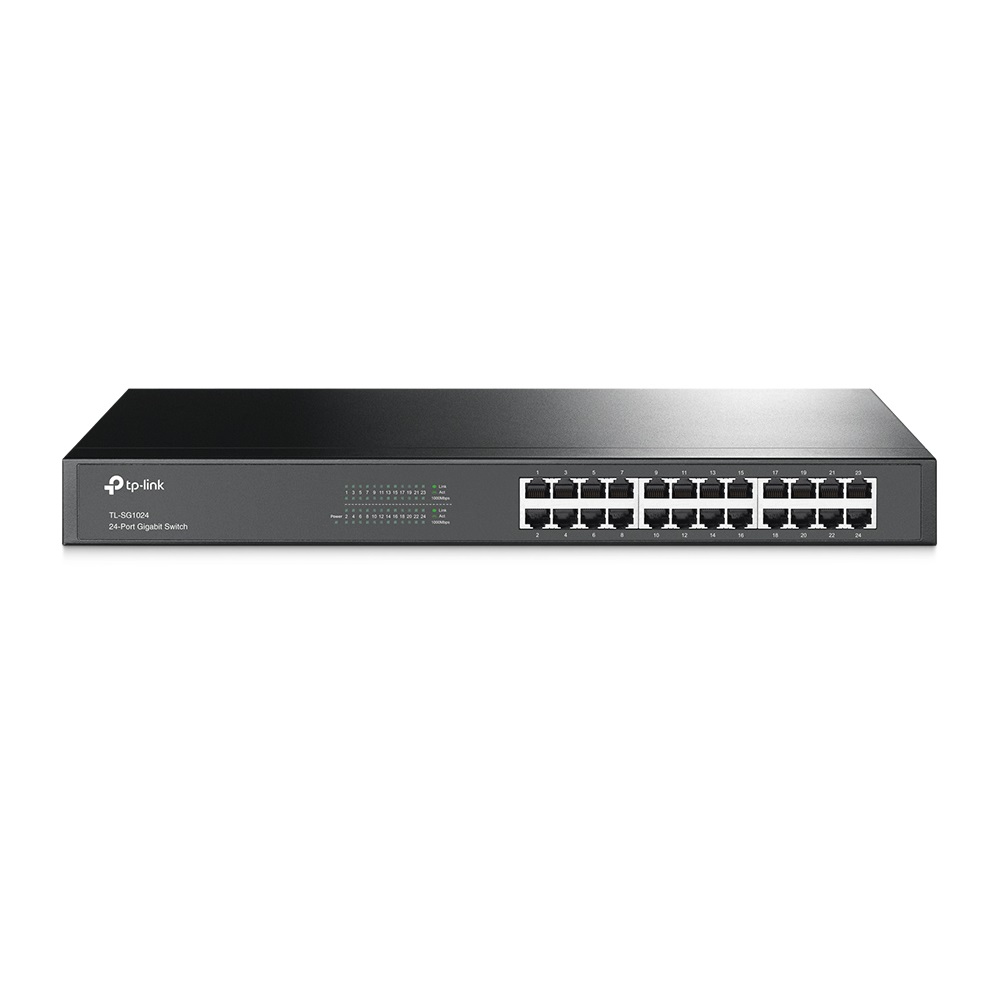

Networking 1G Unmanaged Switch 24Port 10/100/1000Mbps Rackmount Gigabit Switch (TP-Link SG1024)

24Port 10/100/1000Mbps Rackmount Gigabit Switch (TP-Link SG1024) SKU: 102320

1+
$89.99
Business Member Pricing

Warranty: 1 Year

  • 30-day money back guarantee
  • 15% restocking fee after 30days.
  • Safe SSL encrypted shopping

Description

TP-Link Product Page: SG1024


The TL-SG1024 Gigabit Ethernet Switch provides you with a high-performance, low-cost, easy-to-use, seamless and standard upgrade to improve old network to 1000Mbps network. All 24 ports support auto MDI/MDIX, no need to worry about the cable type, simply plug and play. Moreover, with the innovative energy-efficient technology, the TL-SG1024 can save power consumption and 80% of the packaging material can be recycled, making it an eco-friendly solution for your business network.


Features:

  • 24 10/100/1000Mbps RJ45 ports
  • Innovative energy-efficient technology saves power consumption
  • Supports MAC address self-learning and auto MDI/MDIX
  • Standard 19-inch rack-mountable steel case
  • Store and forward Switching scheme

  • Standards and Protocols
     IEEE802.3, 802.3u, 802.3ab, 802.3x
     CSMA/CD, TCP/IP
    Basic Function
     Wire-speed Performance
     MAC Address Auto-Learning and Auto-aging
     IEEE802.3x flow control for Full-Duplex Mode and backpressure for Half-Duplex Mode
    Backbound Bandwidth
     48Gbps
    MAC Address Table
     8k
    Forwarding Rate
     10BASE-T: 14880pps/port
     100BASE-TX: 148800pps/port
     1000BASE-T: 1488000pps/port
    Transmission Method
     Store-and-Forward
    Ports
     24 10/100/1000Mbps Auto-Negotiation RJ45 ports (Auto MDI/MDIX)
    Network Media
     10Base-T: UTP category 3, 4, 5 cable (maximum
    100m)
     EIA/TIA-568 100 ohm STP (maximum 100m)
     100Base-Tx: UTP Cat.5E cable (maximum 100m)
     EIA/TIA-568 100 ohm STP (maximum 100m)
     1000Base-T: UTP Cat.5E cable (maximum 100m)
    LED Indicators
     Power, Link/Act
    Safety & Emission
     FCC, CE
    Dimensions (W*D*H)
     17.3*7.1*1.7 in. (440*180*44 mm)
    Environment
     Operating Temperature: 0C~40C (32F~104F)
     Storage Temperature: -40C~70C (-40F~158F)
     Operating Humidity: 10%~90% non-condensing
     Storage Humidity: 5%~90% non-condensing

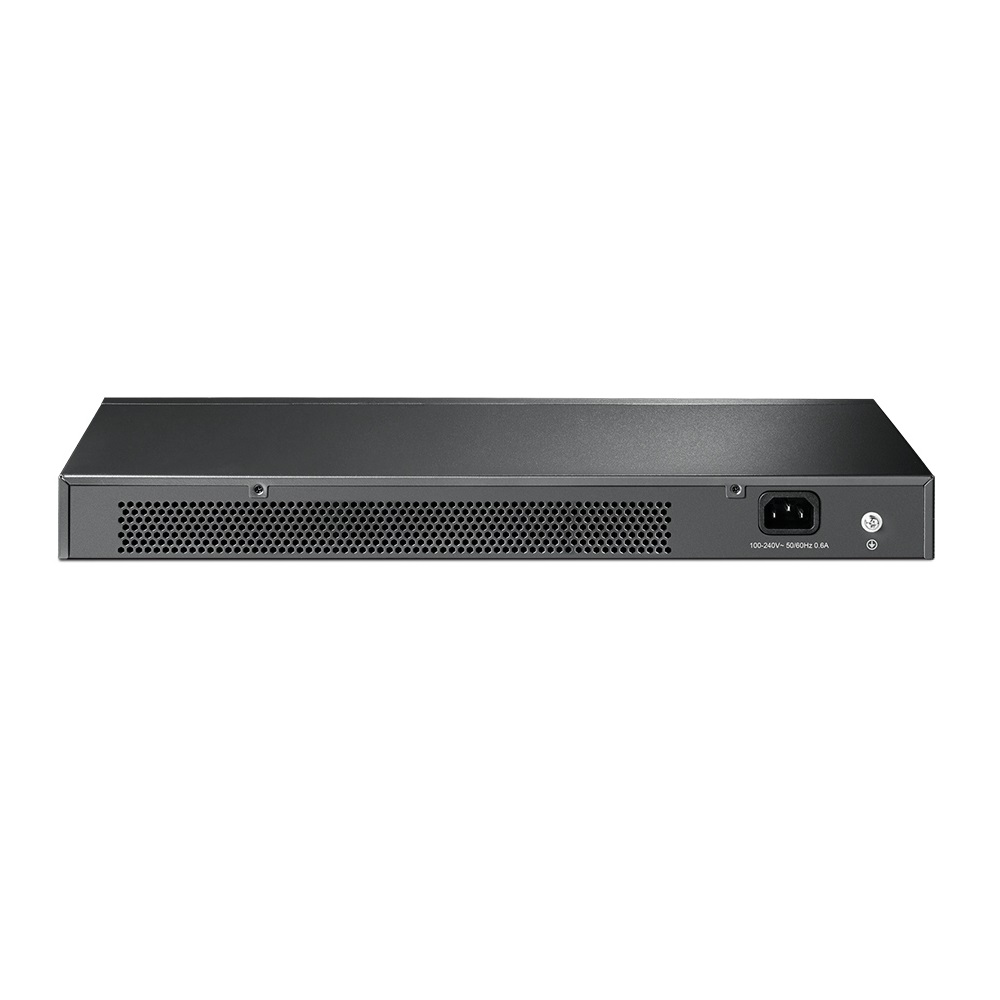

    Power
     100-240VAC, 50/60Hz
